Optional Interfaces

The printer can optionally be fitted with one or two of the following
interface boards at the right-hand side of the printer's rear plate:
• Double Serial Interface Board
• Serial/Industrial Interface Board
• IEEE 1284 Parallel Interface Board (only one at a time)
• RFID Option Board (available as spare part only, as part of RFID kit)
Regardless of any of the interface boards mentioned above are installed,
the printer can also be fitted with one of the following EasyLAN inter-
face boards for connection to a Local Area Network (LAN):
• EasyLAN Ethernet Interface
• EasyLAN Wireless Interface

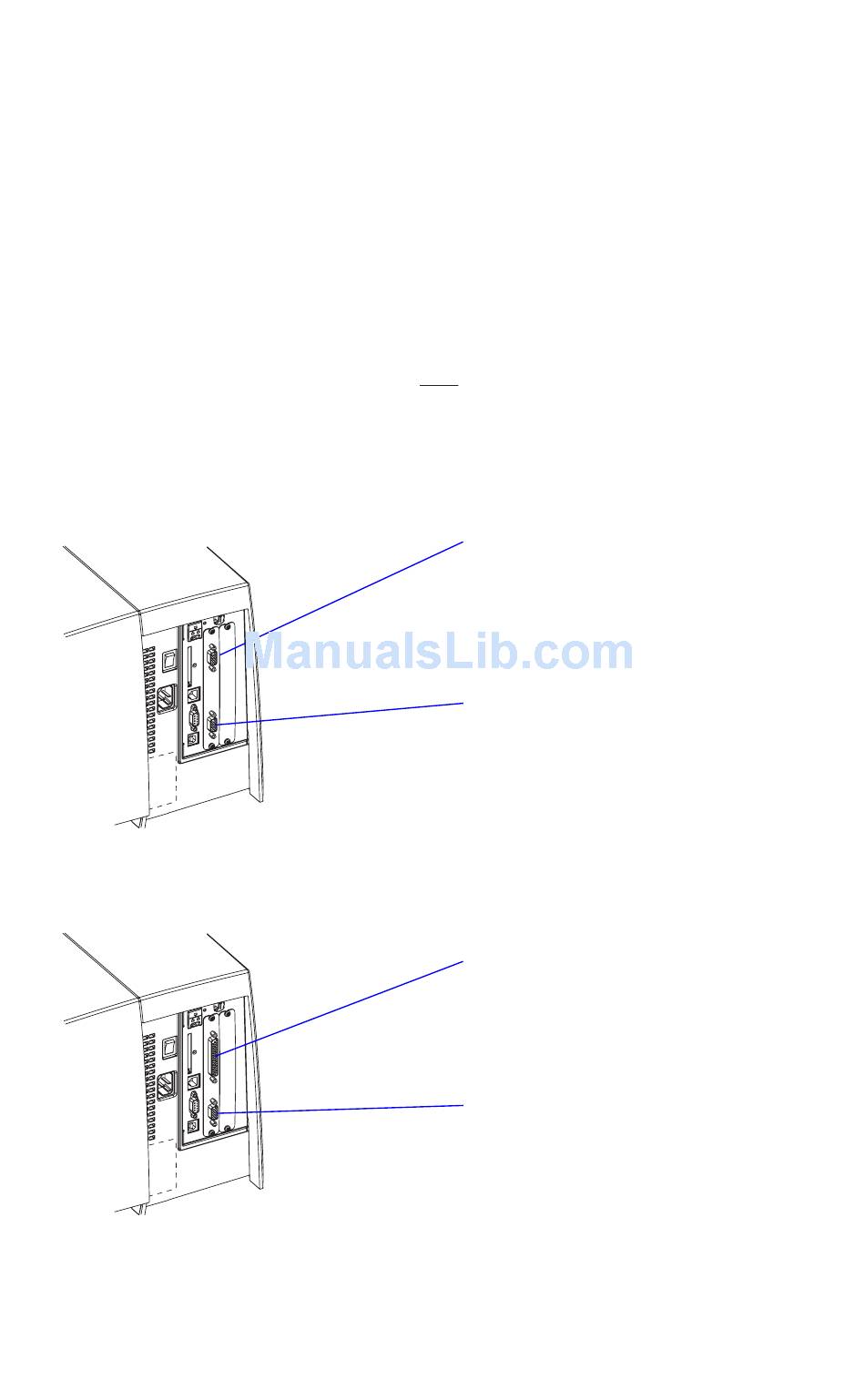

Double Serial Interface Board
Serial/Industrial Interface Board
Intermec EasyCoder PM4i—User's Guide (Fingerprint version)
Appendix C—Interfaces
"uart3:"
RS-232,
RS-422 non isolated,
or 20 mA current loop
"uart2:"
RS-232,
RS-422 non isolated,
RS-422 Isolated,
or RS-485
Industrial interface
8 digital In ports
8 digital Out ports
4 relay ports
"uart2:"
RS-232,
RS-422 non isolated,
RS-422 Isolated,
or RS-485
