Installing the Quick-Load Guides

1

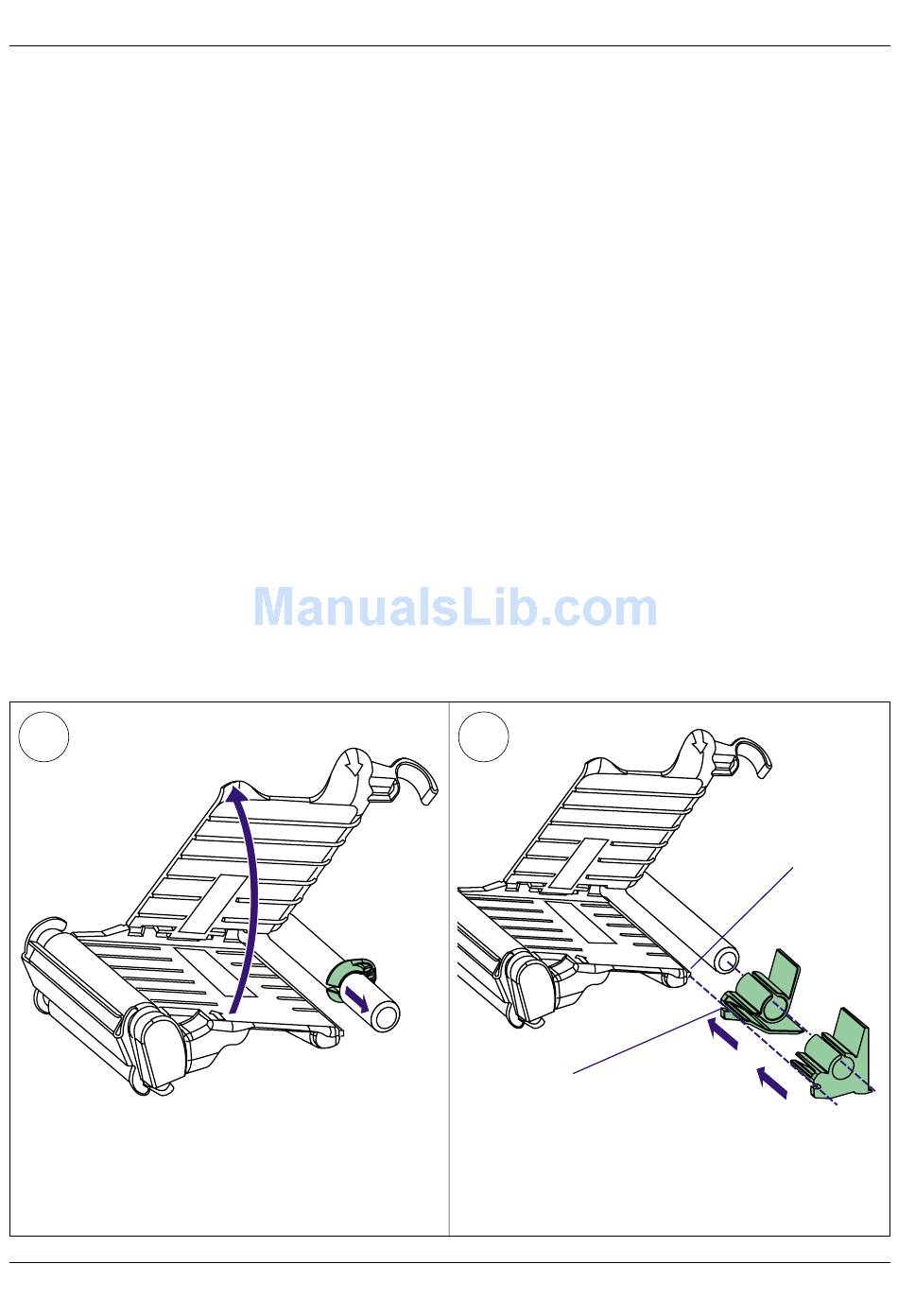

Lift up the upper media guide and pull out the green
edge guide (save it for later use).
Intermec EasyCoder F2 – User's Guide
The Quick-Load guides may, depending on model, be factory-
installed or be enclosed in the box for optional installation by the
user. They replace the standard edge guide.
The Quick-Load guides facilitate media load from behind the
print mechanism and help guiding the media when using an
external supply. Quick-Load guides cannot be used for peel-off
operation.
The standard ring-shaped edge guide is used when you want to
load the media from the side rather than from behind and is
necessary for peel-off operation
The Quick-Load guides can be used with media that is 40-60
mm (1.57-2.36 in.) wide. The inner guide should be fi tted fl ush
to the center section, whereas the outer of the guide is adjustable
for various media widths. Refer to Chapter 4, "Media Load/Tear-
Off with Quick-Load Guides" for loading instructions.
2
Press the Quick-Load guides onto the shaft as
illustrated, making sure that the notches fi t the rail
Chapter 12 Adjustments
Notch
at the rear of the lower media guide.
Rail
