PowerPick20/30 Vacuum Generation Unit Installation (optional)

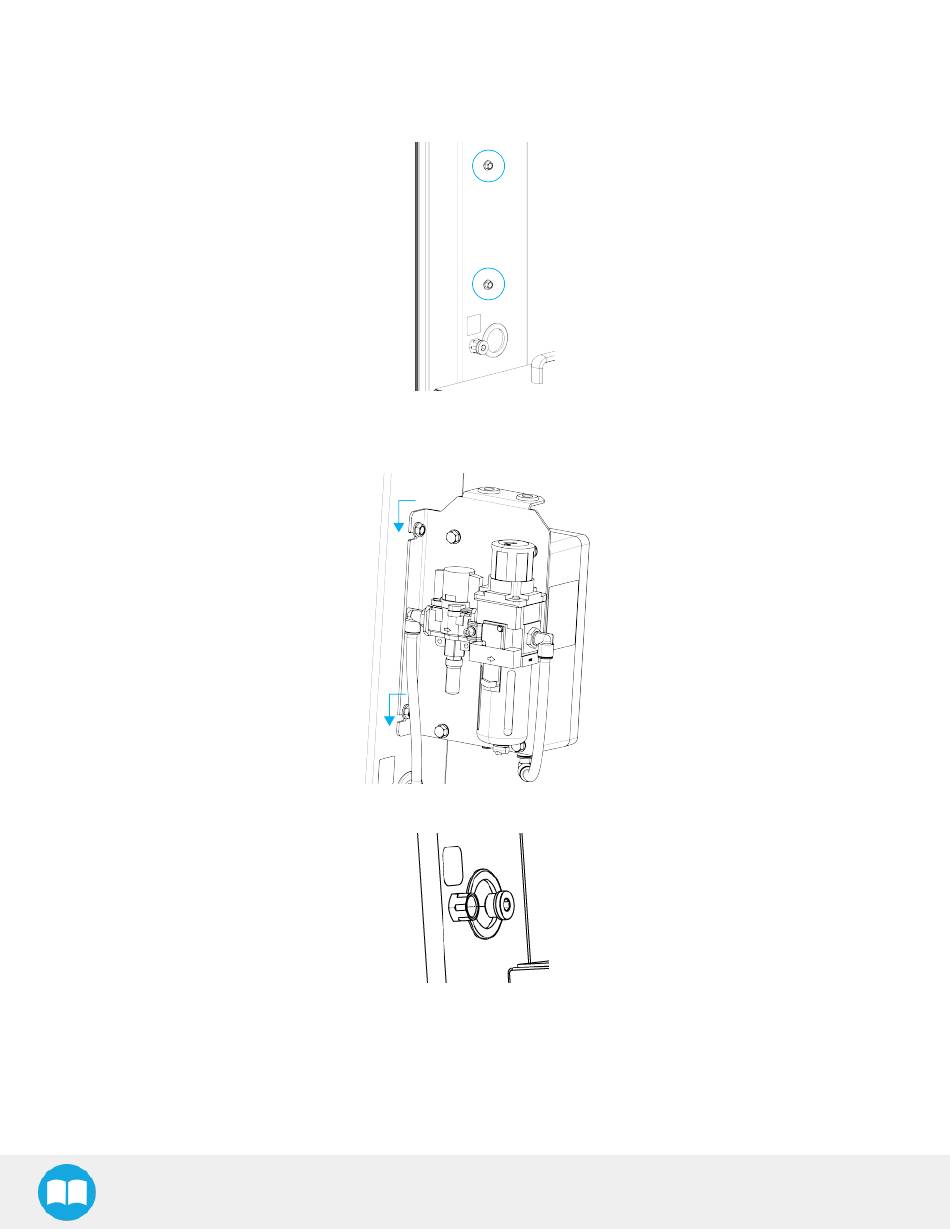

1. Loosen the two (2) M8 x 20 hex head cap screws intended to hold the Vacuum Generation Unit until their head is at a
distance of approximately 4 mm (3/16 in) from the surface.
2. Slide the Vacuum Generation Unit onto the two (2) M8 x 20 hex head cap screws.
3. Tighten the screws using the provided 13 mm socket. The required torque is 5 Nm.
4. Using the provided 10 mm hex key, remove the pneumatic plug from the bulkhead fitting located on the column.
