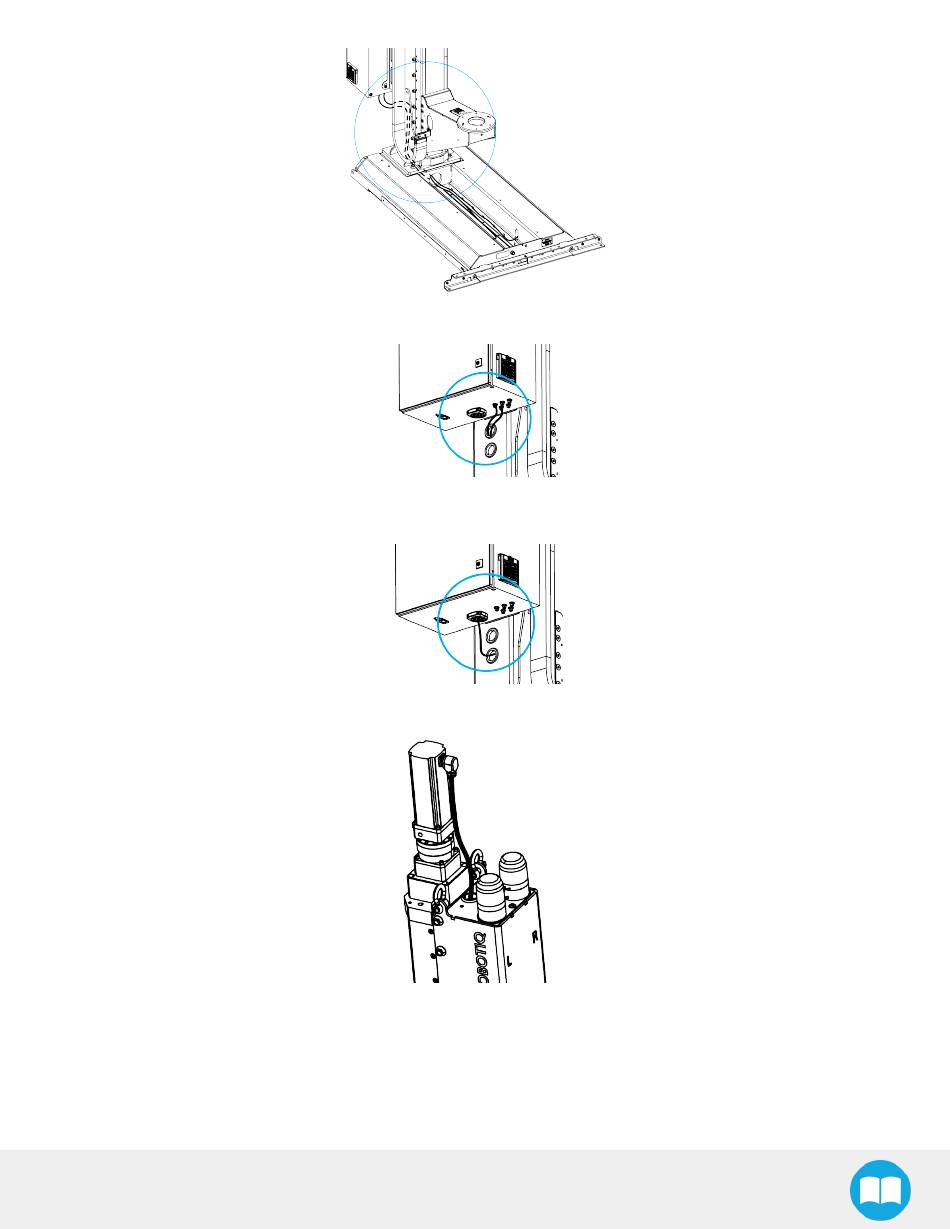

9. Connect the pallet sensor cables to the Robotiq control box. Follow cable labeling and connector identification.
10. Push the linear axis cable into the column via hole #5 and bring it out at the top of the column. You may use the preinstalled
fishing line to pull the cable through.
11. Connect the motor cable to the motor on the top of the linear axis.
AX20/AX30 Palletizing Solution
