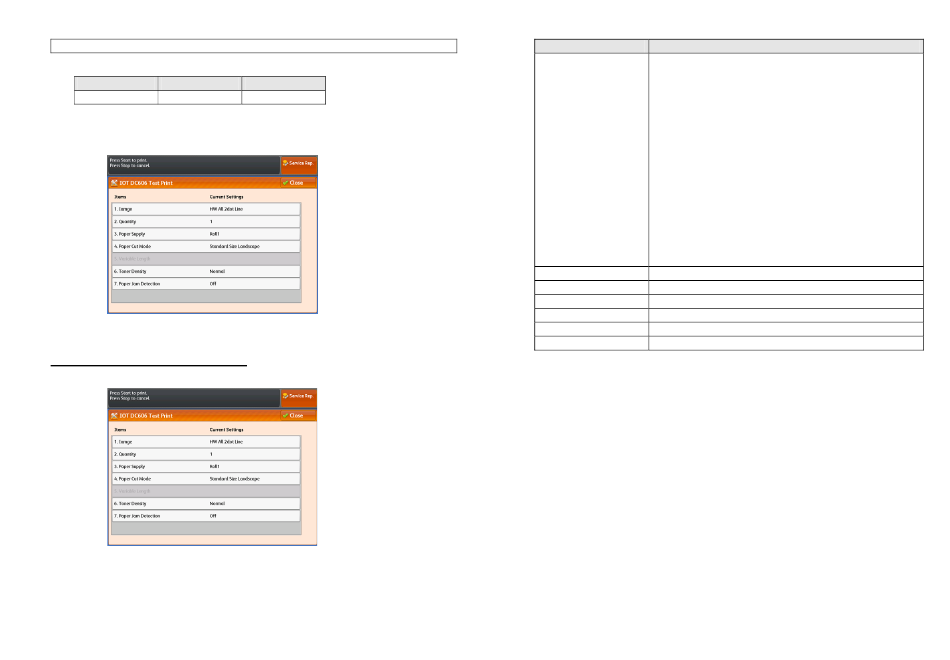

DC606 Test Print
<Sub System>
IIT CP-Cont
- -
<Function>
Prints a Test Pattern that is stored in the IOT PWB.
<Operation Procedure>
Printing an IOT Built-in Test Pattern
1. Set parameters.
6-98
IOT
O
Settings Item
HW All 2 dot Line (2 dot Grid and diagonal line created by H/W)
Basic Pattern (2 dot Grid and diagonal line, Black patch, Rogm
text)
Print Quality Pattern (Resolution, Black patch, Rogm text, 1~3 dot
aspect diagonals)
All 2 dot Line (2 dot Grid and diagonal line)
All Ladder (2 dot ON/OFF horizontal line)
Ladder (vertical/horizontal Ladder)
1. Image
Gray Scale (Density Pattern of dither and Error Diffusion)
Nip Adjust (Horizontal) (Black band)
Hasika (1, 2, 3, and 4 dot horizontal line)
2 dot Half Dark (2 dot ON/OFF Zig Zag Grid)
2 dot Half (2 dot ON/OFF dot)
1 dot Half (1 dot ON/OFF dot)
LPH (LPH Adjustment Pattern)
All Black (All black)
2. Quantity 1 to 999 set
3. Paper Supply Roll 1, Roll 2, Bypass
4. Paper Cut Mode Standard Size Portrait, Standard Size Landscape, Variable Length
5. Variable Length 210 to 32,767 mm
6. Toner Density Lighten +2, Lighten +1, Normal, Darken +1, Darken +2
7.Paper Jam Detection Off, On
2. Operate the following keys on the UI Panel.
- <Start>: Starts the Test Print
- <Stop>: Cancels the Test Print
- <Reset>: Resets the parameters
Setting Range
