4. The current data appears.
Note Values with '*' indicates that they have changed from the default value.
DC131_RW_AllRead
6.5 IIT PC-Diag
Chapter 6 General
<<Writing All NVM Data>>
Perform this when you want to overwrite all the data that was loaded from a file (by
performing [Load] at the [File] menu in the IIT Diag Menu screen) in one go. (Performs
batch processing for the change in individual NVM data by the execution of [Write->RAM],
which will be described later.)
Note Because this will overwrite all the data, make sure that all NVM data items have
been correctly entered before performing it.

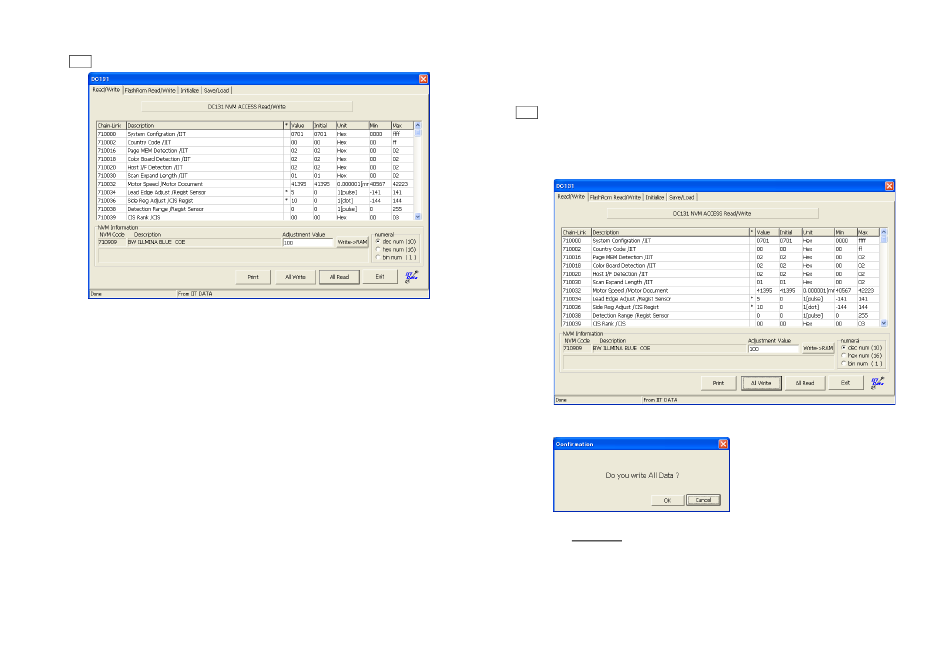

1. Select 'DC131 NOVRAM ACCESS' from the [Diag Code] pull-down menu and click
[OK].
2. On the [Read/Write] tab, click [All Write].
DC131_RW_AllWrite
3. A confirmation message will be displayed. To write the data, click [OK].
4. On the [Save/Load] tab, perform [Save (RAM->EEPROM (Rewrite))]. (For more details,
refer to [Save/Load])
WriteAllDataOk
