REP9.2.4 Document Shelf Assembly
Reference PL: PL9.2
Removal
WARNING
Turn OFF the power and the breaker, then unplug the
power plug to prevent electric shock.
Procedure
1. Open the Swing Frame.
2. Open the Front Upper Cover.
3. Remove the Document Shelf Assembly. (Figure 1)
1) Remove the screw (x2).
2) Remove the Document Shelf Assembly.

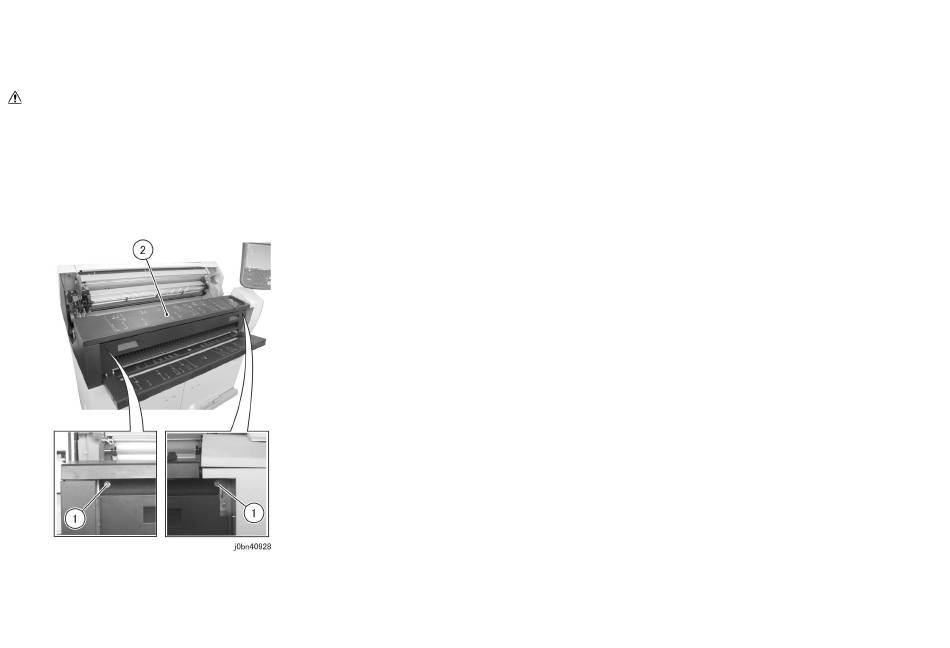

(Figure 1) j0bn40928
4-126
Installation
Procedure
To install, carry out the removal steps in reverse order.
