3. IIT
REP3.1.1 IIT PWB
Reference PL: PL3.1
Removal
WARNING
Turn OFF the power and the breaker, then unplug the
power plug to prevent electric shock.
WARNING
Static electricity may damage electrical parts.
Always wear a wrist strap to protect electrical parts from
static damage. If a wrist strap is not available, touch some
metallic parts before servicing to discharge the static
electricity.
Procedure
1. Remove the Right Swing Cover. (REP9.2.2)
2. Remove the Left Swing Cover. (REP9.3.2)
4-20

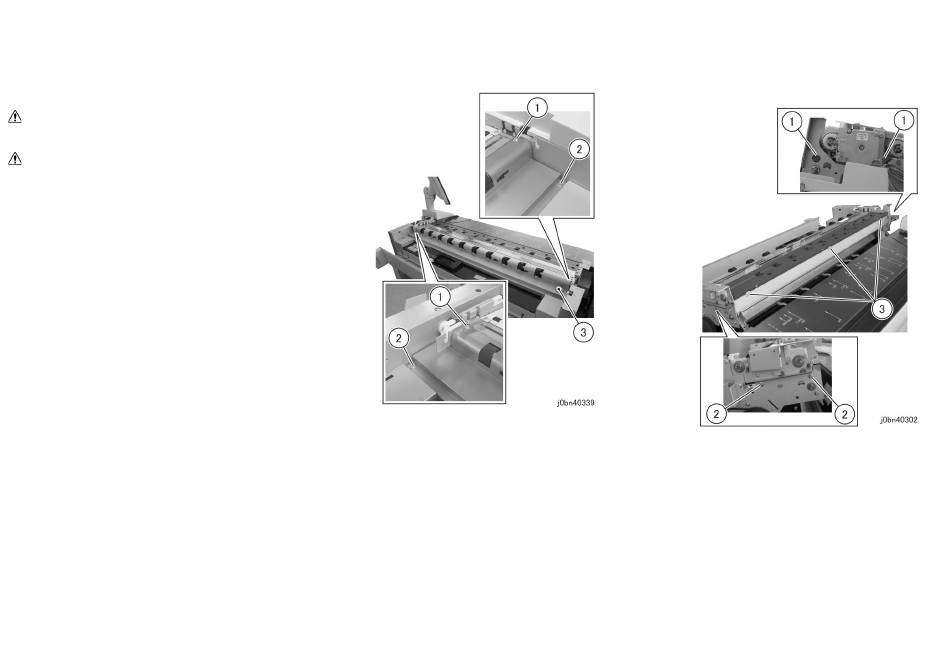

3. Remove the Rear Lower Baffle. (Figure 1)
1) Remove the screw (x2).
2) Remove the screw (x2).
3) Remove the Rear Lower Baffle.
(Figure 1) j0bn40339
4. Open the Swing Frame.
5. Remove the screws on the IIT Frame. (Figure 2)
1) Remove the screw (x2).
2) Remove the screw (x2).
3) Remove the screw (x3).
(Figure 2) j0bn40302
6. Close the Swing Frame.
