Xerox Wide Format 6705 System Manual page 205

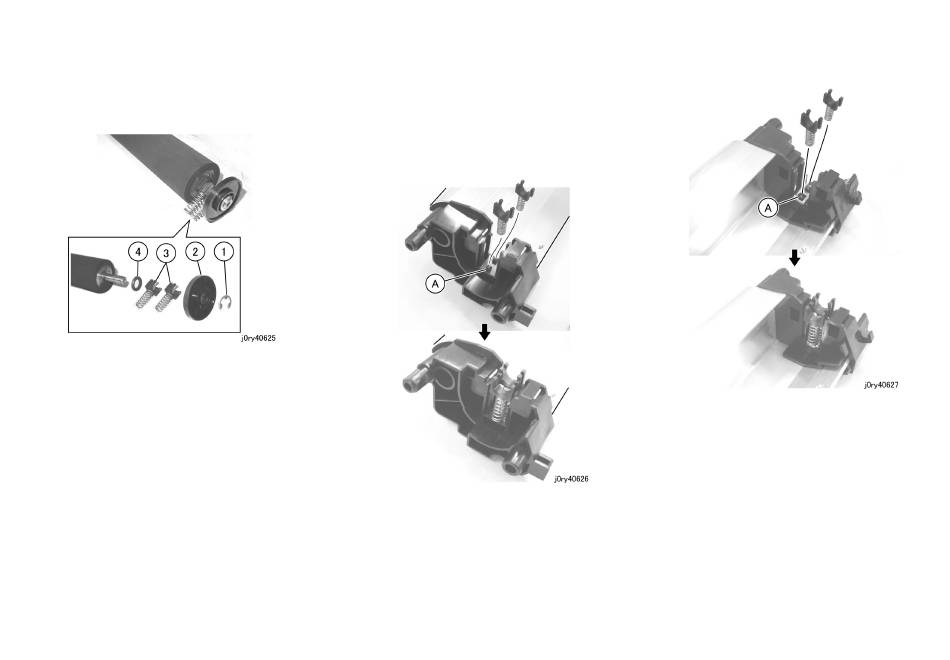

7. Remove the Tracking Roll on the Right side of the BTR.
(Figure 4)
1) Remove the E-Clip.
2) Remove the Tracking Roll.
3) Remove the BTR Bearing (x2) and BTR Spring (x2).
4) Remove the washer.
(Figure 4) j0ry40625
4.2 Disassembly/Assembly
Chapter 4 Disassembly/Assembly and Adjustment
Installation
Procedure
To install, carry out the removal steps in reverse order.
However, install the parts in the following order:
1. Install the BTR Bearing (x4) and BTR Spring (x4) to the
BTR Frame first.
2. Fit the BTR Spring (x2) to the Boss (x2) of the BTR Left
Frame. (Figure 5)
A) Boss of the BTR Left Frame
(Figure 5) j0ry40626
3. Fit the BTR Spring (x2) to the Boss (x2) of the BTR Right
Frame. (Figure 6)
A) Boss of the BTR Right Frame
(Figure 6) j0ry40627
4-71
