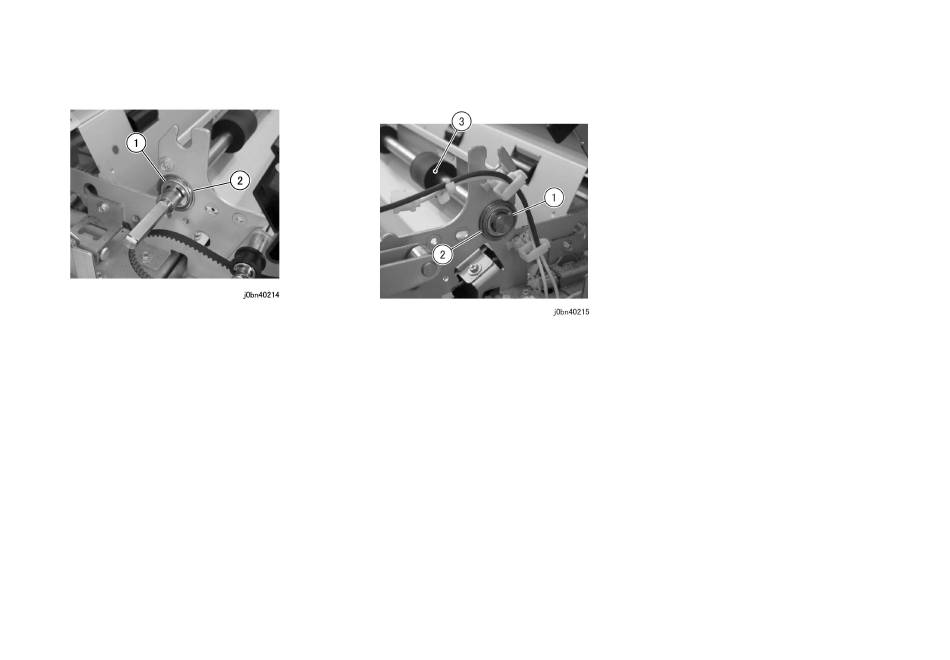

10. Remove the bearing. (Figure 3)
1) Remove the E-Clip.
2) Remove the bearing.
(Figure 3) j0bn40214
4.2 Disassembly/Assembly
Chapter 4 Disassembly/Assembly and Adjustment
11. Remove the Regi Roll. (Figure 4)
1) Remove the E-Clip.
2) Remove the bearing.
3) Regi Roll
(Figure 4) j0bn40215
Installation
Procedure
To install, carry out the removal steps in reverse order.
