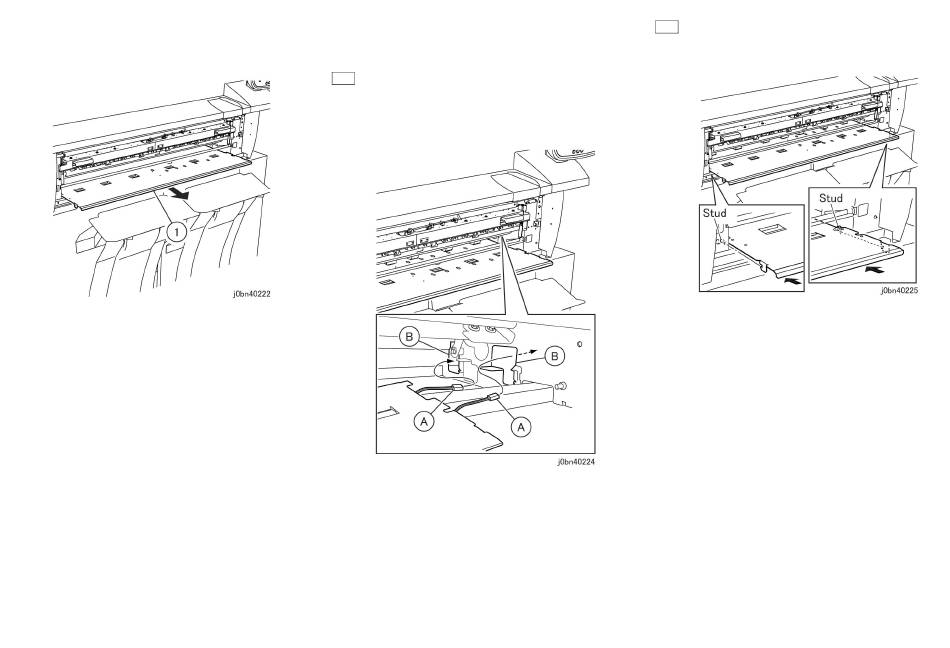

14. Remove the Manual Feed Lower Baffle Assembly. (Figure
8)
1) Remove the Manual Feed Lower Baffle Assembly in
the direction of the arrow.
(Figure 8) j0bn40222
4-10
Installation
Procedure
To install, carry out the removal steps in reverse order.
Note The Connector Housing of the Manual Feed Lower
Baffle Assembly is taken out of the Frame hole.
(Figure 9)
A) Connector Housing
B) Frame hole
(Figure 9) j0bn40224
Note When installing the Manual Feed Lower Baffle
Assembly, insert and set the Studs of the Frame into
the U-Grooves of the Manual Feed Lower Baffle
Assembly. (Figure 10)
(Figure 10) j0bn40225
