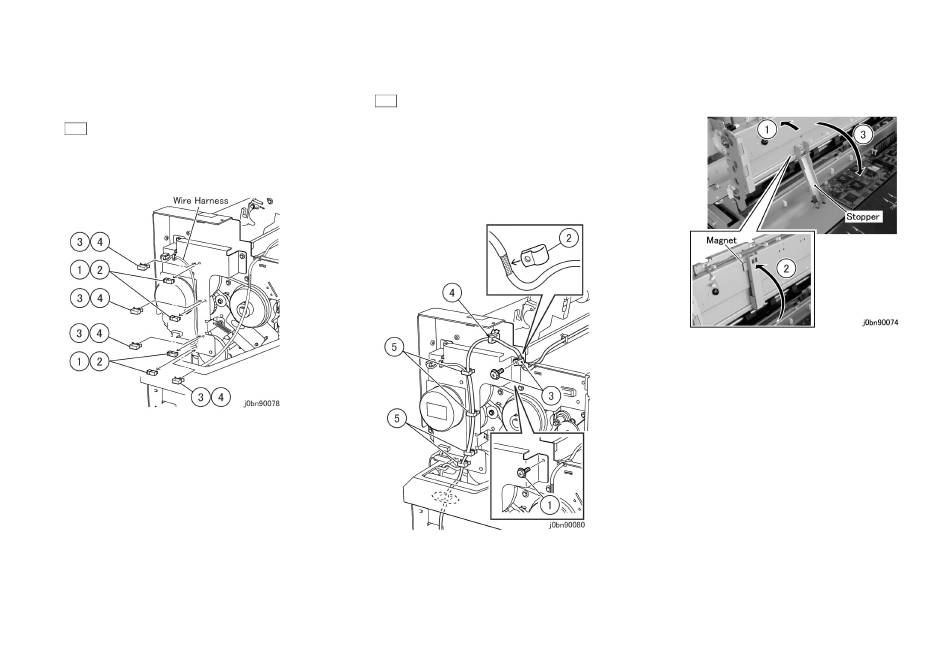

24. [When Installing USB Cable Only] Remove the clamp
(x4) that are installed at the Main Motor and Deve Clutch
and install the clamp (small) (x4) provided in the bundle.
(Figure 19)
1) Release the clamp (x4) and remove the wire harness.
2) Remove the clamp (x4).
Note The removed clamp (x4) will not be used.
3) Install the clamp (small) (x4) provided in the bundle.
4) Pass the wire harness that was released in Step 1)
through the clamp (small) (x4). However, leave the
clamp (small) (x4) in released state.
(Figure 19) j0bn90078
8-26
25. [When Installing USB Cable Only] Secure the USB
Cable by using the P-Clamp and the clamp (large)
provided in the bundle and the clamp (x4) . (Figure 20)
1) Remove the screw.
Note The removed screw will not be used.
2) Install the P-Clamp to the section of the USB Cable
where the insulation is cut.
3) Use the screw (M4x8) provided in the bundle to
secure the P-Clamp together with the Main Drive
Assembly.
4) Attach the clamp (large) provided in the bundle and
secure the USB Cable.
5) Secure the USB Cable by using the clamp (x4).
(Figure 20) j0bn90080
26. Close the IIT Frame. (Figure 21)
1) Raise the IIT Frame slightly to free the Stopper.
2) Let the Magnet of the Stopper adhere to the IIT
Frame.
3) Close the IIT Frame slowly.
(Figure 21) j0bn90074
