REP6.2.2 BCR
Reference PL: PL6.2
Removal
WARNING
Turn OFF the power and the breaker, then unplug the
power plug to prevent electric shock.
Note Spread paper to cover the floor to prevent toner from
dirtying the place.
Note Keep your hands off the surface of the BCR.
Note If the life of one of the parts has been exceeded,
replace all 3 parts simultaneously.
Procedure
1. Open the Swing Frame.
2. Remove the Toner Bottle. (PL6.1)
3. Remove the Xero Module. (REP6.1.1)

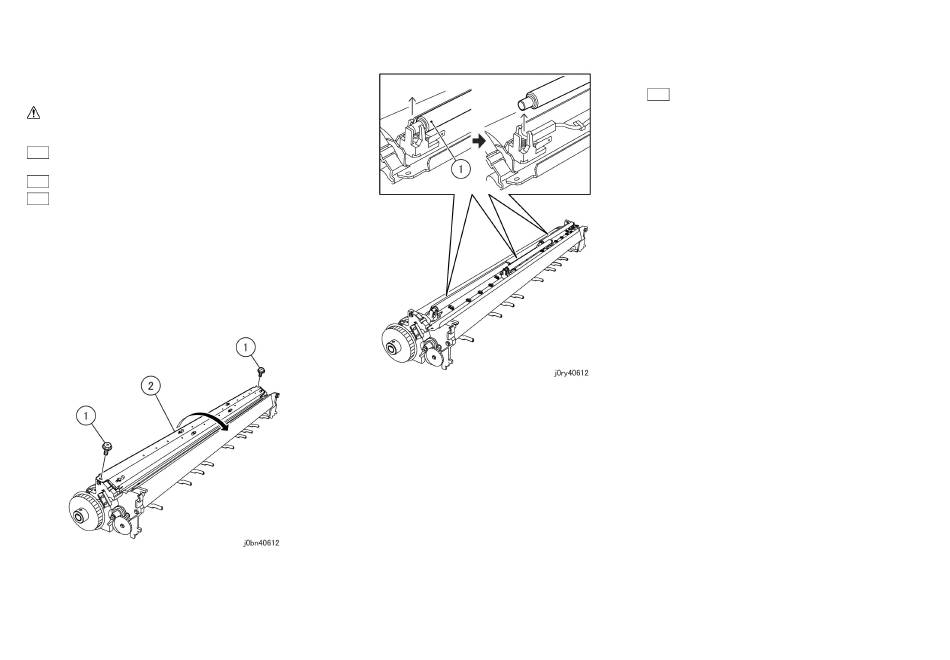

4. Open the BCR Frame. (Figure 1)
1) Remove the screw (x2).
2) Open the BCR Frame.
(Figure 1) j0bn40612
4.2 Disassembly/Assembly
Chapter 4 Disassembly/Assembly and Adjustment
5. Remove the BCR. (Figure 2)
1) Remove the BCR in the direction of the arrow.
(Figure 2) j0bn40613
Installation
Procedure
To install, carry out the removal steps in reverse order.
Note When a part has been replaced, check copy/print
quality and if required, perform Xerographic Set Up.
(ADJ8.1.6)
