Xerox Wide Format 6705 System Manual page 240

REP8.6.1 (SCC) WF01 PWB
Reference PL: PL8.6
Removal
WARNING
Turn OFF the power and the breaker, then unplug the
power plug to prevent electric shock.
CAUTION
Static electricity may damage electrical parts.
Always wear a wrist strap to protect electrical parts from
static damage. If a wrist strap is not available, touch some
metallic parts before servicing to discharge the static
electricity.
Procedure
1. Remove the Right Lower Cover. (REP9.2.3)
4-106

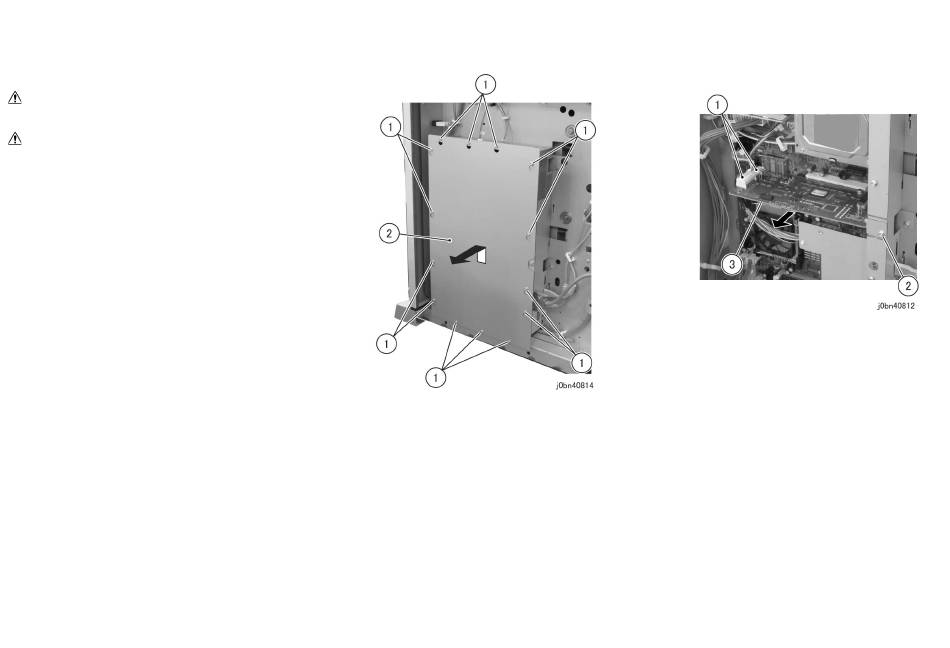

2. Remove the ESS Cover. (Figure 1)
1) Loosen the screw (x14).
2) Remove the ESS Cover.
(Figure 1) j0bn40814
3. Remove the WF01 PWB. (Figure 2)
1) Disconnect the connector (x2).
2) Remove the screw.
3) Remove the WF01 PWB.
(Figure 2) j0bn40812
4.2 Disassembly/Assembly
Chapter 4 Disassembly/Assembly and Adjustment
