Xerox Wide Format 6705 System Manual page 265

REP9.3.4 Left Lower Cover
Reference PL: PL9.3
Removal
WARNING
Turn OFF the power and the breaker, then unplug the
power plug to prevent electric shock.
Procedure
1. Open the Front Left Door.
2. Loosen the screws at the Front side of the Front Left
Cover. (Figure 1)
1) Loosen the screw (x2).

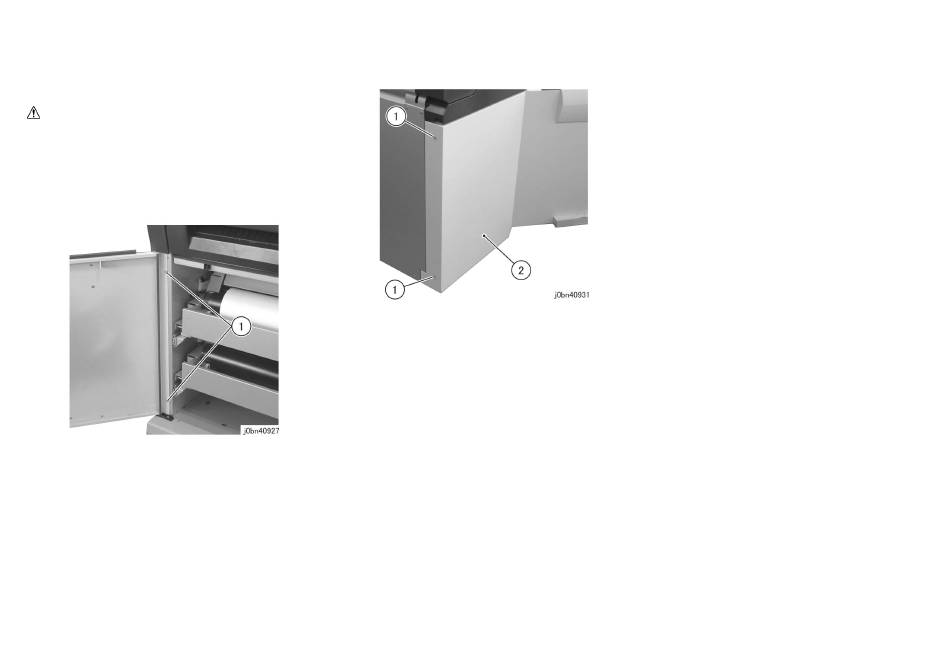

(Figure 1) j0bn40927
4.2 Disassembly/Assembly
Chapter 4 Disassembly/Assembly and Adjustment
3. Remove the Left Lower Cover. (Figure 2)
1) Remove the screw (x2).
2) Remove the Left Lower Cover.
(Figure 2) j0bn40931
Installation
Procedure
To install, carry out the removal steps in reverse order.
4-131
