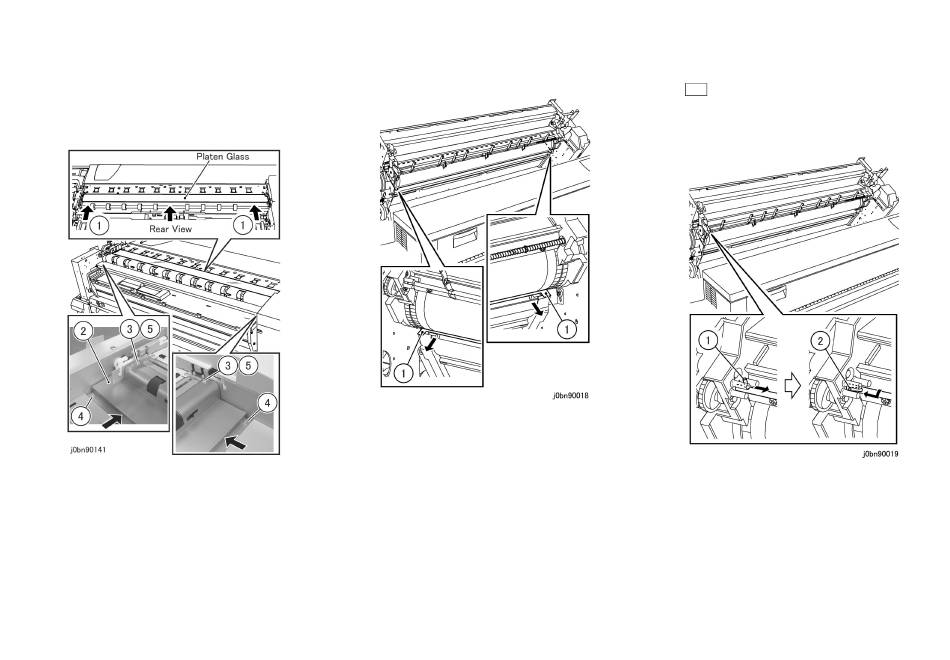

16. Install the Rear Lower Baffle. (Figure 18)
1) Press the Platen Glass against the Front side.
2) Install the Rear Lower Baffle.
3) Loosely affix the screw (x2).
4) Tighten the screw (x2) while pressing the Rear Lower
Baffle against the Front side.
5) Tighten the screw (x2).
(Figure 18) j0bn90141
8-8
17. Remove the protective paper of the Xero Module (Mag.
Roll). (Figure 19)
1) Hold onto the tab (3x8 cm) at both sides and slowly
pull out the protective paper (A0 width x 20 cm).
(Figure 19) j0bn90018
18. Set the Drum Finger Shaft. (Figure 20)
1) Hold the Left side of the Drum Finger Shaft and move
it to the left and right by approx. 2 cm.
Note
If the Drum Finger Shaft is moved more than
necessary, the Drum Finger Shaft might
come off.
2) Move the pin of the Drum Finger Shaft slowly to the
position indicated in the figure.
(Figure 20) j0bn90019
Chapter 8 Installation and Removal
8.1 Installation
