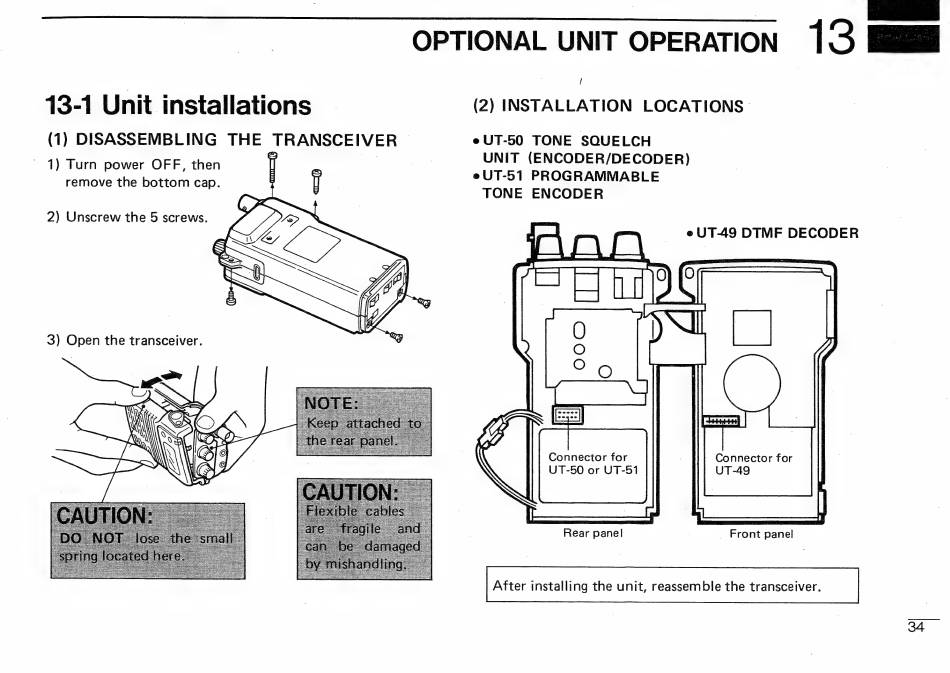

(1) DISASSEMBLING
THE
TRANSCEIVER
e UT-50 TONE
SOUELCH
|
UNIT (ENCODER/DECODER)
eUT-b1
PROGRAMMABLE
TONE
ENCODER
1) Turn power OFF, then
remove the bottom cap.
2) Unscrew the 5 screws.
Connector for
UT-49
Connector for
UT-50 or UT-51
Rear panel
Front panel
After installing the unit, reassemble the transceiver.
34
