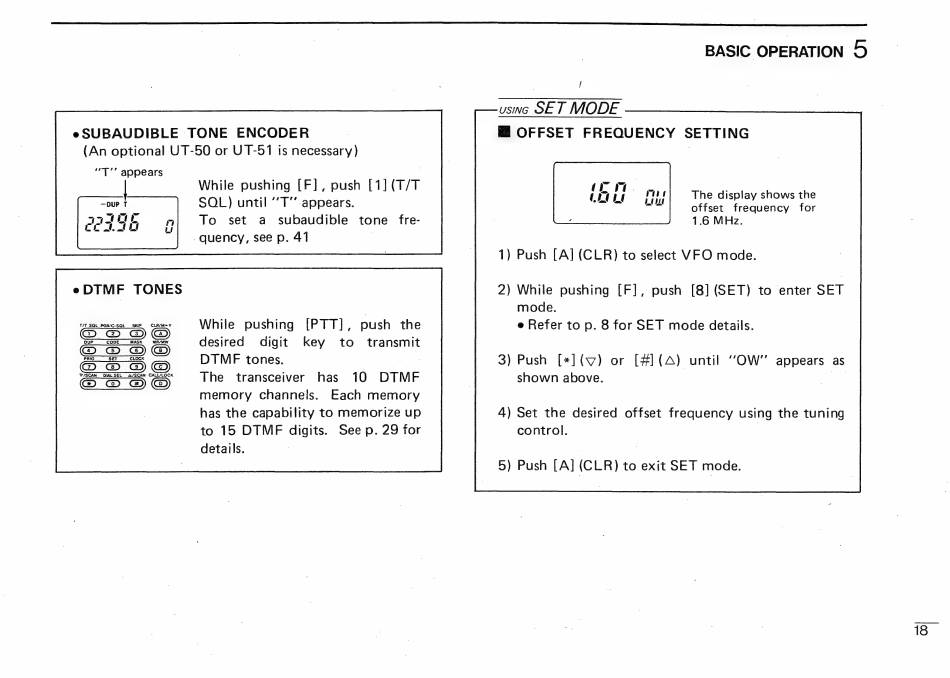

Icom IC-3SAT Instruction Manual page 21

eSUBAUDIBLE TONE ENCODER
(An optional UT-50 or UT-51 is necessary)
'"'T'' appears
While pushing [F], push [1] (T/T
SOL) until "T" appears.
To set a subaudible tone fre-
. quency, see р. 41
While pushing [PTT], push the
desired digit key to transmit
DTMF tones. :
The transceiver has 10 DTMF
memory channels. Each memory
has the capability to memorize up
to 15 DTMF digits. See p. 29 for
details.
BASIC OPERATION 5
!
usne SET MODE
El OFFSET FREQUENCY SETTING
The display shows the
offset frequency for
1.6MHz.
1) Push [A] (CLR) to select VFO mode.
2) While pushing [F], push [8] (SET) to enter SET
mode.
e Refer to p. 8 for SET mode details.
3) Push [*](v) or [91 (A) until "OW" appears as
shown above.
4) Set the desired offset frequency using the tuning
control.
5) Push [A] (CLR) to exit SET mode.
