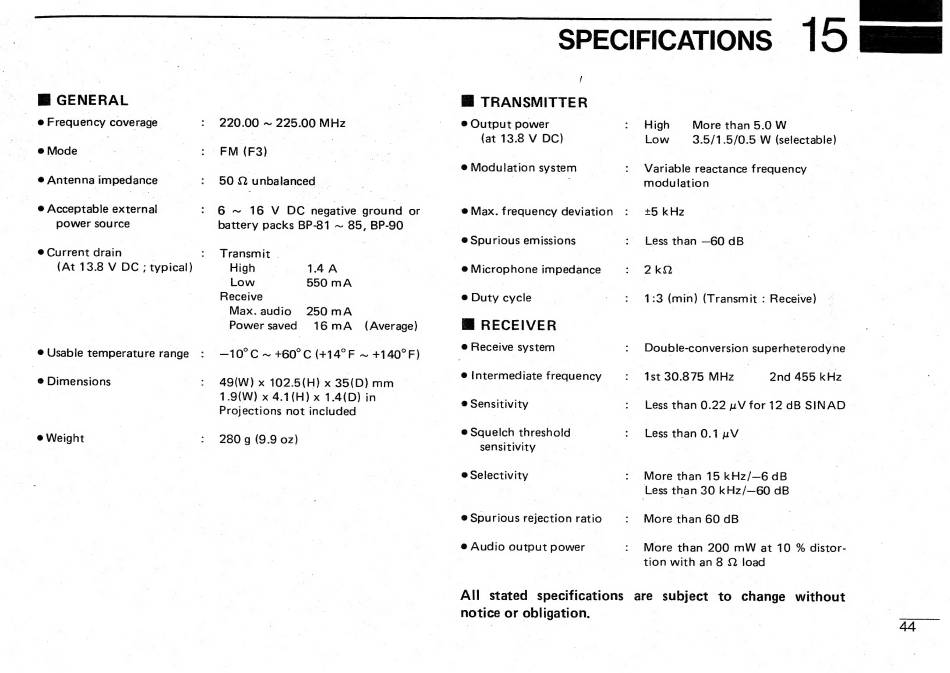

Icom IC-3SAT Instruction Manual page 47

E GENERAL
e Frequency coverage
e Mode
ө Antenna impedance
e Acceptable external
power source
€ Current drain
(At 13.8 V DC ; typical)
ө Usable temperature range
ө Dimensions
e Weight
220.00 ~ 225.00 MHz
: FM (F3)
50 © unbalanced |
6 ~ 16 V DC negative ground or
battery packs BP-81 ~ 85, BP-90
Transmit . |
High 1.4 A
Low 550 mA
Receive
Max. audio 250 тА
Power saved 16 тА (Average)
—10°C ~ +60° С (414? Е ~ +140°F)
49(W) х 102.5(H) x 35(0) mm
1.9(W) x 4.1(H) x 1.4(D) in
Projections not included
280 g (9.9 oz)
КИЕК
SPECIFICATIONS 15 ME
/
Bl TRANSMITTER
e Output power
(at 13.8 V DC)
e Modulation system
ө Max. frequency deviation
e Spurious emissions
e Microphone impedance
e Duty cycle
RECEIVER
e Receive system
e intermediate frequency
e Sensitivity
e Squelch threshold
sensitivity
e Selectivity
ө Spurious rejection ratio
ө Audio output power
: 1st 30.875 MHz
High More than 5.0 W
Low 3.5/1.5/0.5 W (selectable)
Variable reactance frequency
modulation
+5 kHz
Less than —60 dB
2 ко
1:3 (min) (Transmit : Receive)
Double-conversion superheterodyne
2nd 455 kHz
Less than 0.22 uV for 12 dB SINAD
Less than O.1 uV
More than 15 kHz/—6 dB
Less than 30 kHz/—60 dB
More than 60 dB
More than 200 mW at 10 96 distor-
tion with an 8 © load
All stated specifications are subject to change without
notice or obligation.
