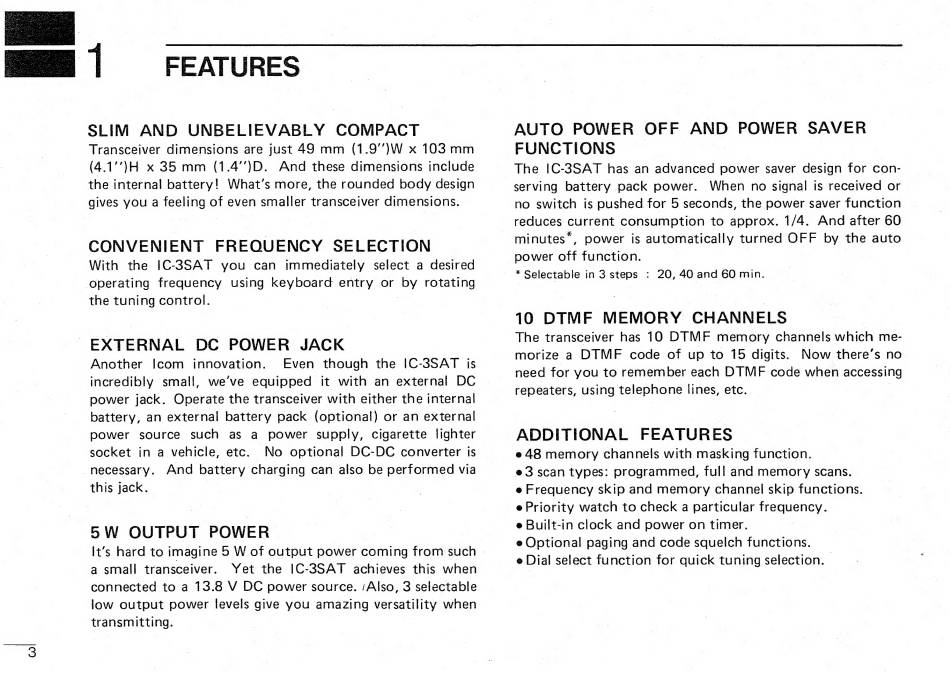

| FEATURES
SLIM AND UNBELIEVABLY COMPACT
Transceiver dimensions are just 49 mm (1.9 )W х 103 mm
(4.1')H x 35 mm (1.4")D. And these dimensions include
the internal battery! What's more, the rounded body design
gives you a feeling of even smaller transceiver dimensions.
CONVENIENT FREOUENCY SELECTION
With the IC-3SAT you can immediately select a desired
operating frequency using keyboard entry or my rotating
the tuning control.
EXTERNAL DC POWER JACK
Another Icom innovation. Even though the IC-3SAT is
incredibly small, we've equipped it with an external DC
power jack. Operate the transceiver with either the internal
battery, an external battery pack (optional) or an external
power source such as a power supply, cigarette lighter
socket in a vehicle, etc. No optional DC-DC converter is
necessary. And battery charging can also be performed via
this jack.
5W OUTPUT POWER
It's hard to imagine 5 W of output power coming from such |
a small transceiver. Yet the IC-3SAT achieves this when
connected to a 13.8 V DC power source. /Also, 3 selectable
low output power levels give you amazing versatility when
transmitting.
AUTO POWER OFF AND POWER SAVER
FUNCTIONS
The IC-3SAT has an advanced power saver design for con-
serving battery pack power. When no signal is received or
no switch is pushed for 5 seconds, the power saver function
reduces current consumption to approx. 1/4. And after 60
minutes*, power is automatically turned OFF by the auto
power off function.
* Selectable in З steps : 20, 40 and 60 min.
10 DTMF MEMORY CHANNELS
The transceiver has 10 DTMF memory channels which me-
morize a DTMF code of up to 15 digits. Now there's no
need for you to remember each DTMF code when accessing
repeaters, using telephone lines, etc. |
ADDITIONAL FEATURES
e 48 memory channels with masking function.
еЗ scan types: programmed, full and memory scans.
e Frequency skip and memory channel skip functions.
e Priority watch to check a particular frequency.
e Built-in clock and power on timer.
e Optional paging and code squelch functions.
e Dial select function for quick tuning selection. -
