Auto Power Off - Icom IC-3SAT Instruction Manual

[EXAMPLE] |
Setting time at 9:30 and the power on time at 15:00.
CLR/M» V
A/SCAN
(F) +
CLR/M» V
A dot appears when the
power on timer is ON.
` CLOCK AND TIMER OPERATION 11
!

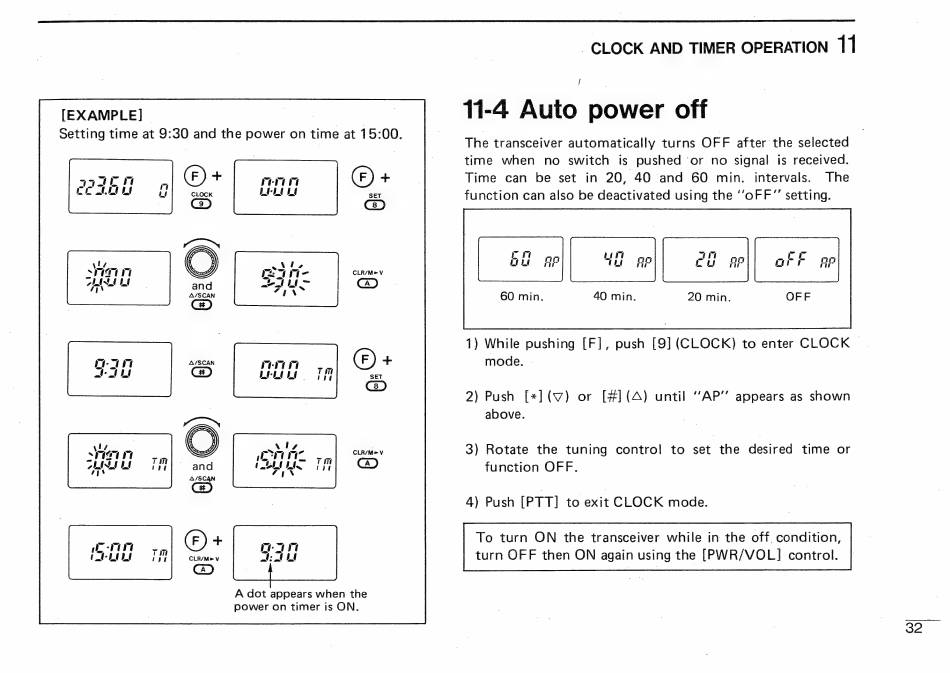

11-4 Auto power off
The transceiver automatically turns OFF after the selected
time when no switch is pushed or no signal is received.
Time can be set in 20, 40 and 60 min. intervals. The
function can also be deactivated using the ''oFF"' setting.
1) While pushing [F], push [9] (CLOCK) to enter CLOCK .
mode. .
2) Push [+] (v) or [1 (^) until "AP" appears as shown
above.
3) Rotate the tuning control to set the desired time or
function OFF.
4) Push [PTT] to exit CLOCK mode.
To turn ON the transceiver while in the off condition,
turn OFF then ON again using the [PWR/VOL] control.
32
