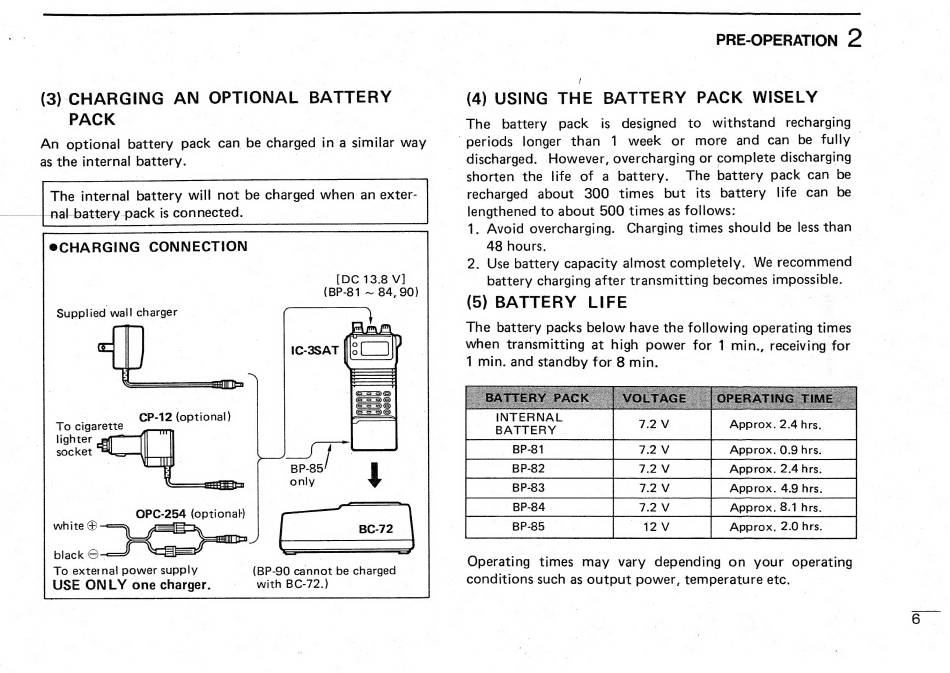

Icom IC-3SAT Instruction Manual page 9

An optional battery pack can be charged in a similar way
as the internal battery. |
The internal battery will not be charged when an exter-
nal battery pack is connected.
eCHARGING CONNECTION
[DC 13.8 V]
(BP-81 ~ 84, 90)
Supplied wall charger
To cigarette
lighter '
socket
OPC-254 (optional)
white ©
black ©-
To external power supply
USE ON LY one charger.
(BP-90 cannot be charged
with BC-72.)
PRE-OPERATION 2
lengthened to about 500 times as follows:
1. Avoid overcharging. Charging times should be less than
48 hours.
(5) BATTERY LIFE
The battery packs below have the following operating times
when transmitting at high power for 1 min., receiving for
1 min. and standby for 8 min.
INTERNAL
BP-81 Approx. 0.9 hrs.
BP-82 Approx. 2.4 hrs.
BP-83 Approx. 4.9 hrs.
BP-84 Approx. 8.1 hrs
` BP-85 Approx. 2.0 hrs
Operating times may vary depending on your operating
conditions such as output power, temperature etc.
|
