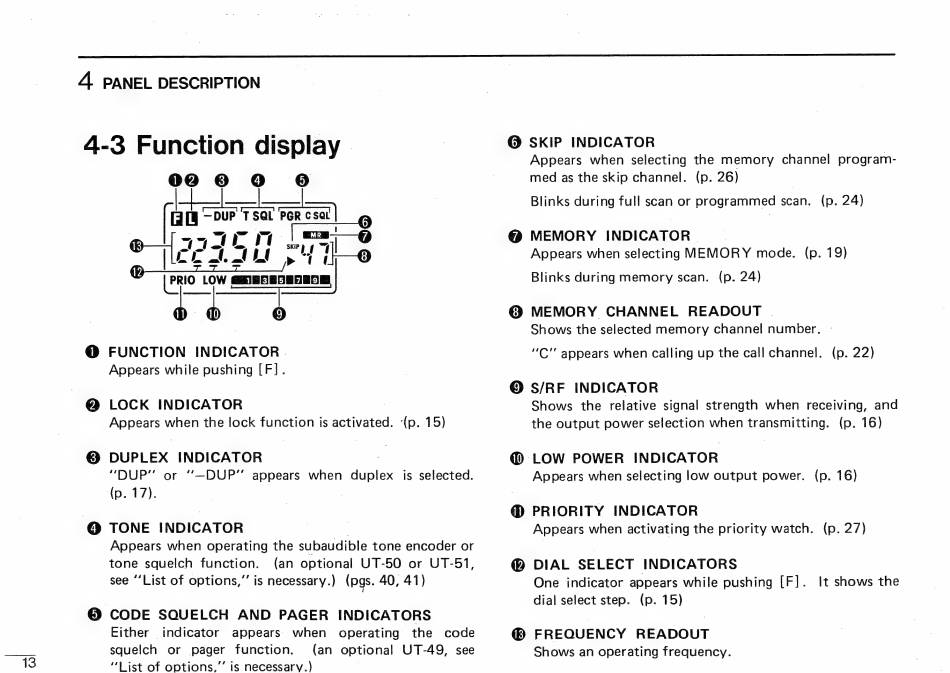

4. PANEL DESCRIPTION
DUP T SQL PGR сЗа | C SQL
NEL de | wm; —
® o [gez 5 PET 9
ыз LOW 218880 Mr e
Pe ws
Q FUNCTION INDICATOR .
Appears while pushing [F].
Q LOCK INDICATOR
DRESS when the lock function is activated. (p. 15)
Ө DUPLEX INDICATOR
"DUP" or "—DUP" appears when sides is selected.
(p. 17).
Q TONE INDICATOR |
Appears when operating the subaudible tone encoder or
tone squelch function. (an optional UT-50 or UT-51,
see "List of options," is necessary.) (pgs. 40, 41)
Ө CODE SQUELCH AND PAGER INDICATORS
Either indicator appears when operating the code
squelch or pager function. (an optional UT-49, see
"List of options," is necessary.)
Q SKIP INDICATOR
Appears when selecting the memory channel program-
med as the skip channel. (p. 26)
Blinks during full scan or programmed scan. (р. 24)
@ MEMORY INDICATOR. |
Appears when selecting MEMORY mode. (p. 19)
Blinks during memory scan. (p. 24)
MEMORY CHANNEL READOUT |
Shows the selected memory channel number.
"C" appears when calling up the call channel. (p. 22)
Q S/RF INDICATOR
Shows the relative signal strength when receiving, and
the output power selection when transmitting. (p. 16)
@ PRIORITY INDICATOR
Appears when activating the priority watch. (p. 27)
@ DIAL SELECT INDICATORS
One indicator appears while pushing [F].
dial select step. (p. 15)
it shows the
(B FREQUENCY READOUT
Shows an operating frequency.
