2 PRE-OPERATION
2-2 Power requirement
(1) POWER SOURCE |
Use any of the following power sources when operating
your IC-3SAT:
e Internal battery.
e6 — 16 V DC external power source through the [DC
13.8 V] jack.
e Either optional battery packs BP-81 ~ BP-85 or six AA
(R6) size dry batteries or NiCd batteries with an optional
BP-90 BATTERY CASE.
When attaching a battery pack or connecting an external
power source, the internal battery is disconnected from
the circuitry.
When the attached battery pack is discharged remove it
and use the internal battery.
(2) CHARGING THE INTERNAL BATTERY
To charge the internal battery, connect the supplied wall
charger to the [DC 13.8 V] jack on the transceiver, or use
an optional BC-72 DESKTOP CHARGER.* The BC-72
allows rapid charging.
*An optional BA-12 BATTERY CHARGE ADAPTER is
necessary when charging with the BC-72..

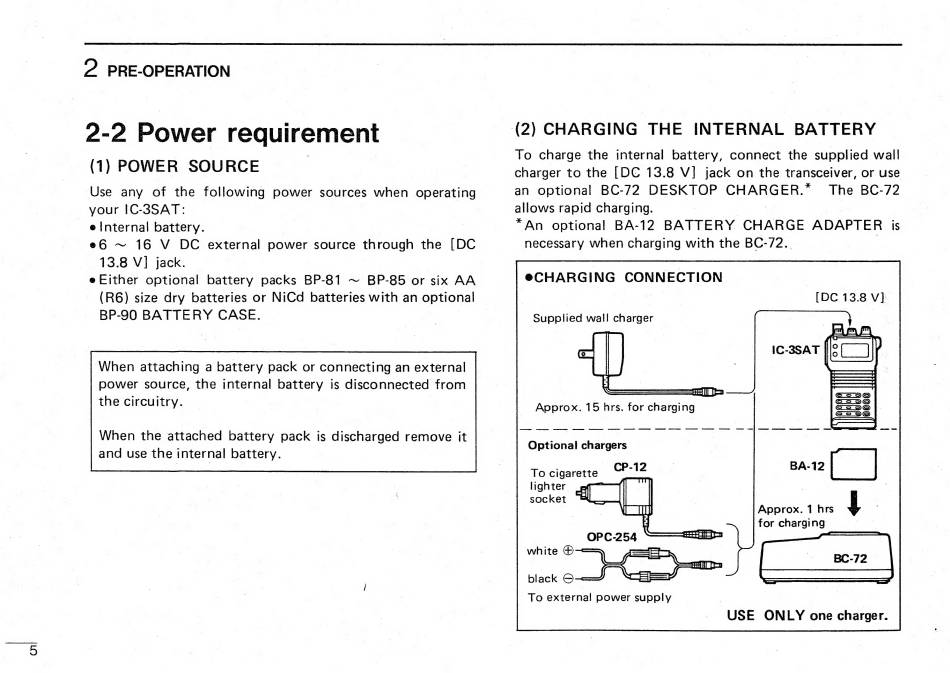

eCHARGING CONNECTION
[DC 13.8 V]
Supplied wall charger
Approx. 15 hrs. for charging
Optional chargers
To cigarette СР-12
lighter
socket
| Approx. 1 hrs i
for charging
OPC-254
black ©
To external power supply
USE ONLY one charger.
