Memory Operation - Icom IC-3SAT Instruction Manual

— 10

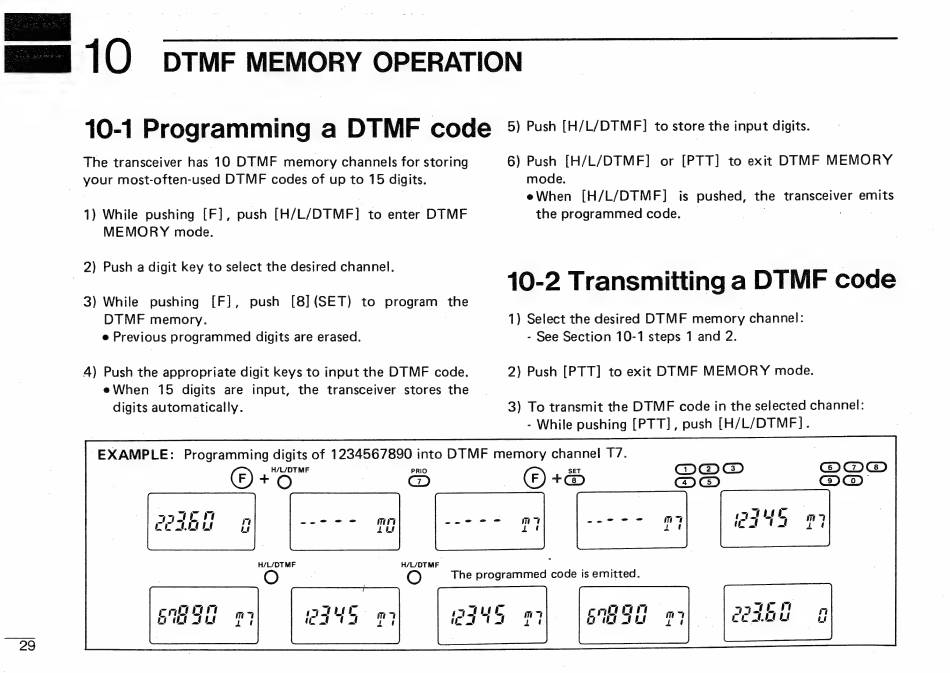

DTMF MEMORY OPERATION
The transceiver has 10 DTMF memory channels for storing
your most-often-used DTMF codes of up to 15 digits.
1) While pushing [F], push [H/L/DTMF] to enter DTMF
MEMORY mode.
2) Push a digit key to select the desired channel.
3) While pushing [F], push [8] (SET) to program the
DTMF memory. |
e Previous programmed digits are erased.
4) Push the appropriate digit keys to input the DTMF code.
eWhen 15 digits are input, the transceiver stores the
digits automatically.
H/L/DTMF vou
6) Push [H/L/DTMF] or [PTT] to exit ОТМЕ MEMORY
mode.
eWhen [H/L/DTMF] is pushed, the transceiver emits
the programmed code. |
1) Select the desired DTMF memory channel:
- See Section 10-1 steps 1 and 2.
2) Push [PTT] to exit DTMF MEMOR Y mode.
EXAMPLE: Programming digits of 1234567890 into DTMF memory channel T7.
H/L/DTMF PRIO
(Б +с BEES
SET
+@
