(4) Detaching and refitting the high voltage PWB

Procedure
1. Remove the right rear cover and right
cover (see page 1-5-6).
2. Remove the screw.
3. Release four Hook A of the high voltage
PWB upside.
4. Slightly slant the PWB like opening the
PWB upside and pull out the FFC.
5. Slant the high voltage PWB 90 degrees
and then pull the high voltage PWB
rightward and remove it.
*: If trying to pull out the PWB on the way of
slanting till 90 degrees, the hooks B secur-
ing the PWB's bottom may damage.
6. Check or replace the high voltage PWB
and refit all the removed parts.
(Notes when reconnected)
1. Check the high voltage PWB is surely
secured with eight hooks.
2. After reattached, check if the ground spring
can be seen from the two-hole of the 18
grounding sections.
High voltage PWB
1-5-39

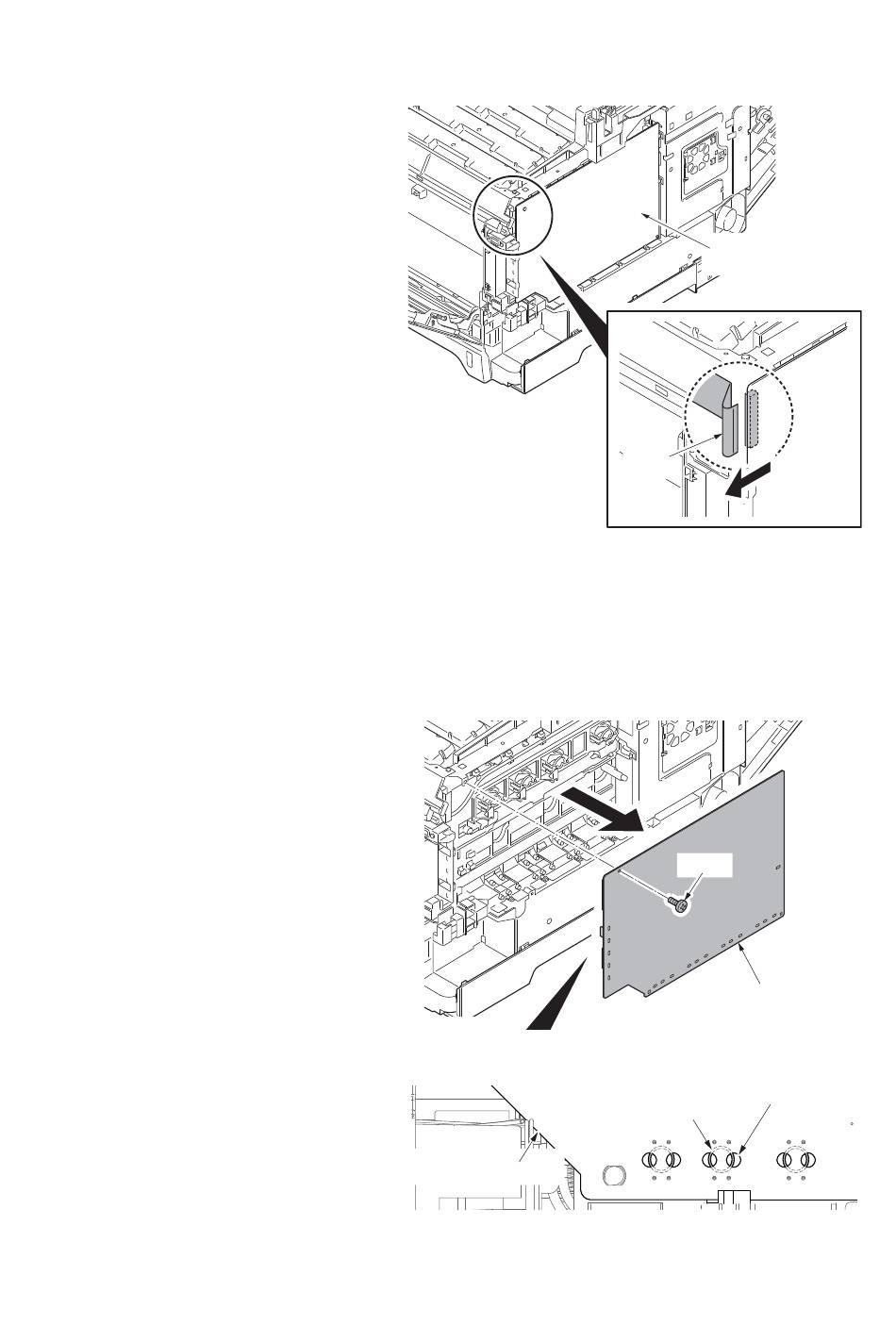

High voltage PWB
FFC
Figure 1-5-59
Screw
High Voltage PWB
Figure 1-5-60
Hole
Spring
Figure 1-5-61
