2-1 Mechanical Construction

2-1-1 Paper feed/conveying section

Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP
tray paper feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the fed
paper to the transfer/separation section.

(1) Cassette paper feed section

The cassette can contain 250 sheets. The sheet from the cassette is pulled out by rotation of the pickup roller
and sent to the paper conveying section by rotation of the paper feed roller. Also the retard roller prevents mul-
tiple feeding of paper.
7
1. Pickup roller
2. Paper feed roller
3. Retard roller
4. Retard cover
5. Retard lever
6. Cassette base
1
10
8
6

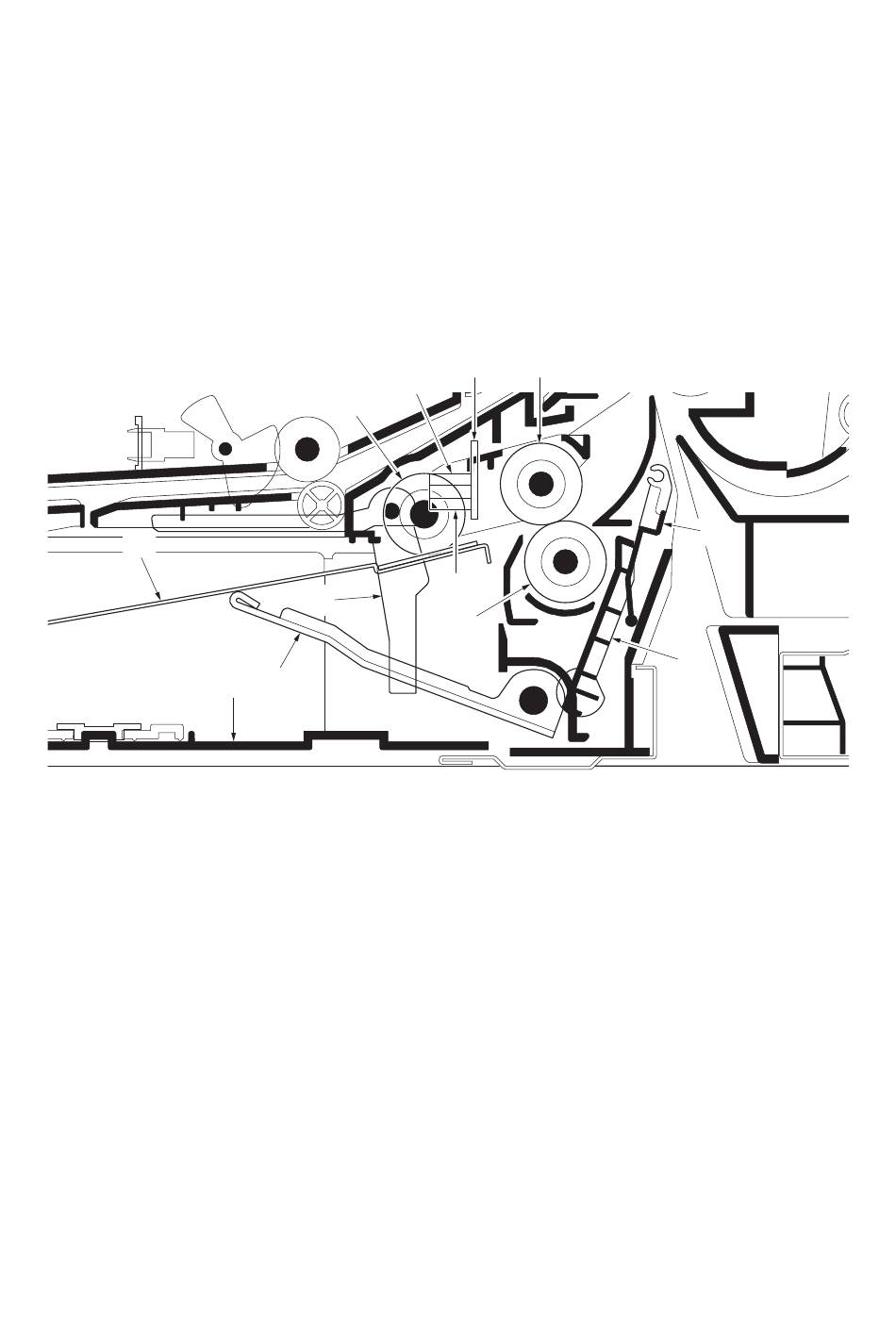

Figure 2-1-1 Cassette paper feed section
12 2
9
11
3
7. Bottom plate
8. Lift work plate
9. Paper sensor (PS)
10. Actuator (paper sensor)
11. Lift sensor (LS)
12. Cassette PWB (CPWB)
2-1-1
2PZ
4
5
