(2) Secondary transfer roller section

The secondary transfer roller section consists of the secondary transfer roller mounted to the paper conveying
unit and the separation brush. To the secondary transfer roller, DC bias is applied from the high voltage PWB
(HVPWB). The toner image formed on the transfer belt is transferred to the paper by the potential difference
and the paper is separated by curvature separation.
Secondary
transfer roller

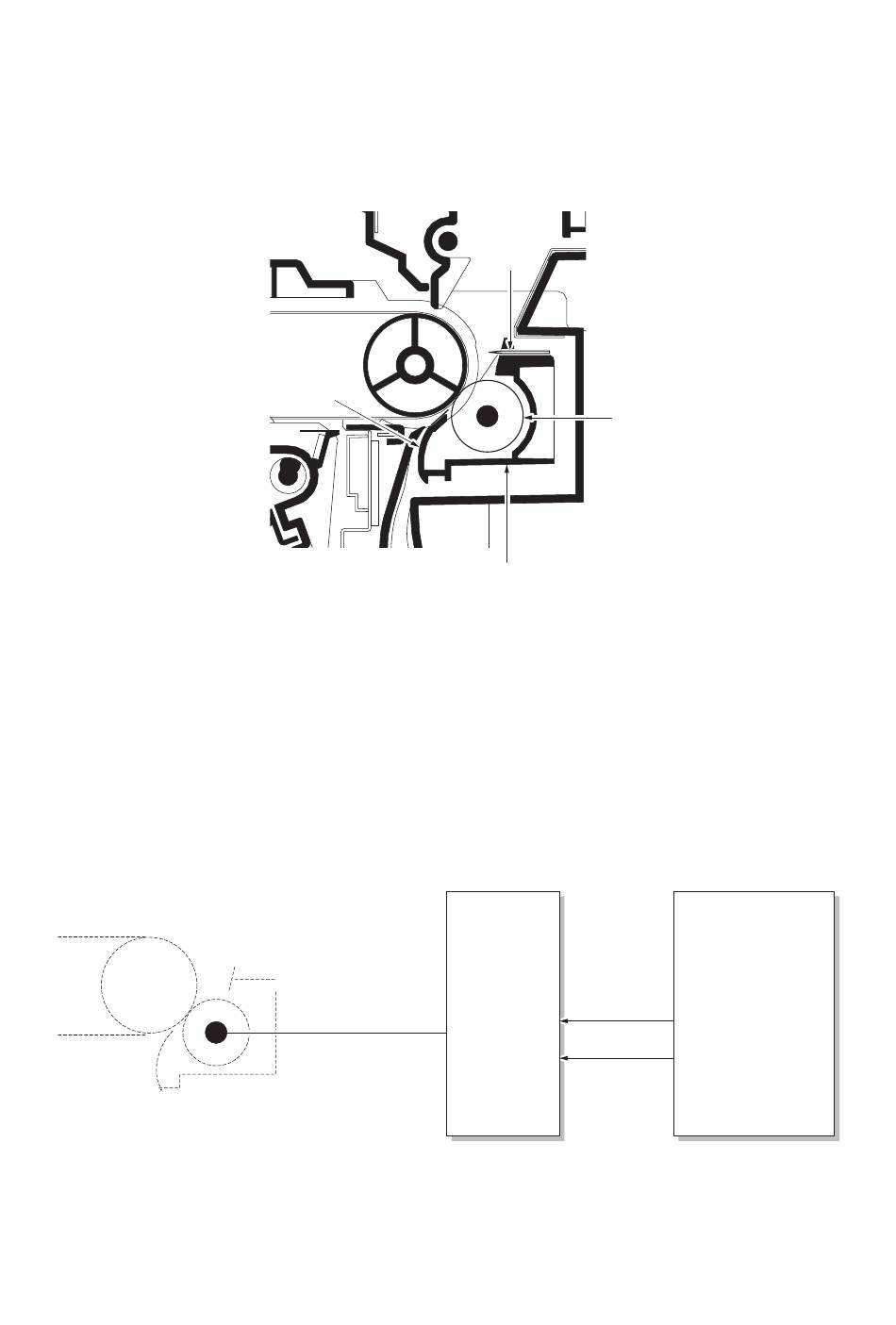

Figure 2-1-19 Secondary transfer roller section block diagram
3
Figure 2-1-18 Secondary transfer roller section
1. Secondary transfer roller
2. Brush holder
3. Paper chute guide
4. Separation brush
Secondary
transfer bias
2-1-18
4
1
2
HVPWB
T2CNT
T2RREM
2PZ
EPWB
YC11-7
YC11-20
