1-5-6 Transfer/Separation section

(1) Detaching and refitting the intermediate transfer unit

Procedure
1. Open the inner tray and the paper con-
veying unit.
2. Remove toner containers (K, M, C, Y).
3. While pushing the lever of front side,
slide the container guide forward and
remove it.
Toner container (K,M,C,Y)
Container guide
1-5-23

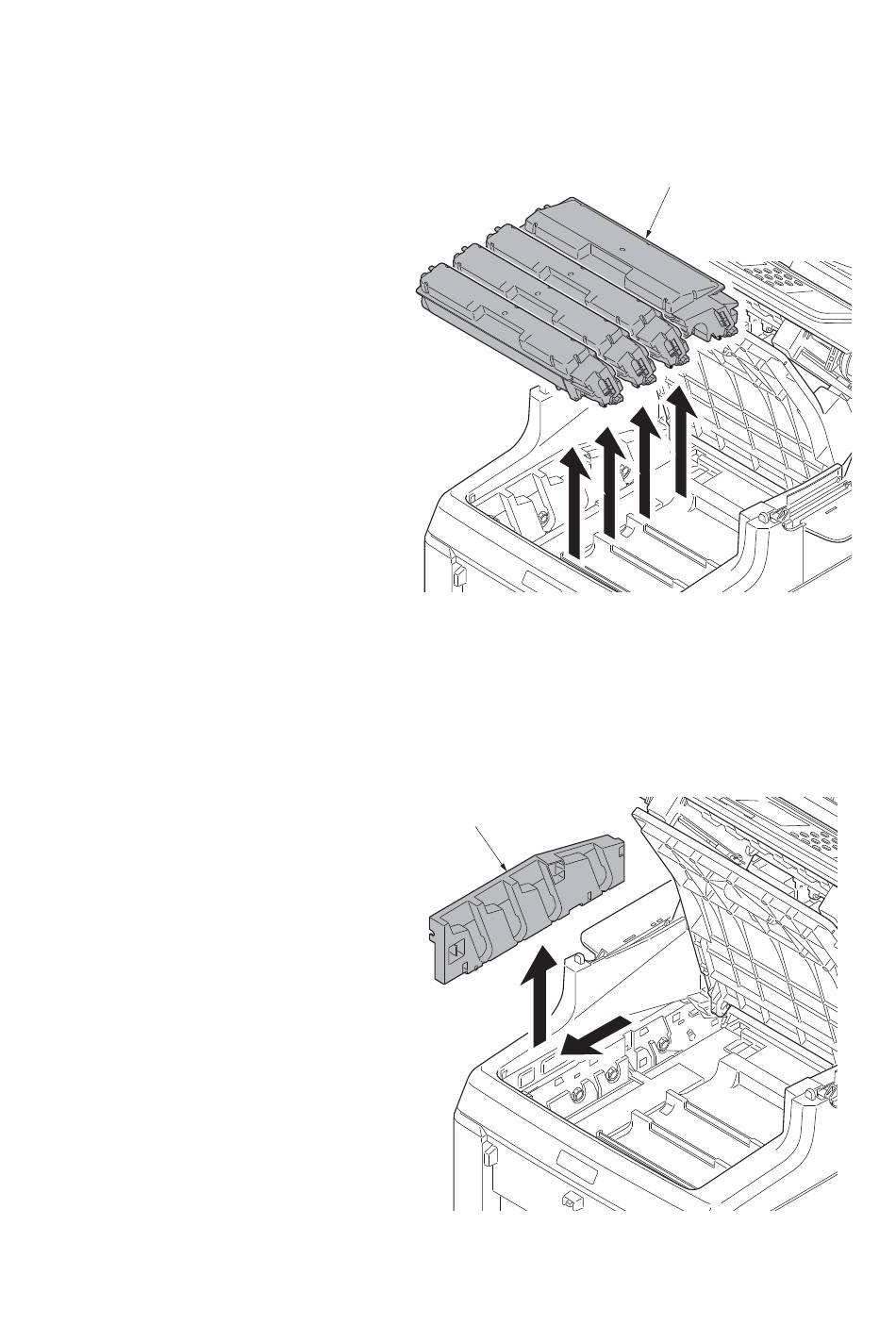

Figure 1-5-32
Figure 1-5-33
2PZ-3
