(5) Detaching and refitting the FAX control PWB

Procedure
1. Remove the IF cover (see page 1-5-3).
2. Remove two screws and then remove
the FAX control PWB.
3. Check or replace the FAX control PWB
and refit all the removed parts.

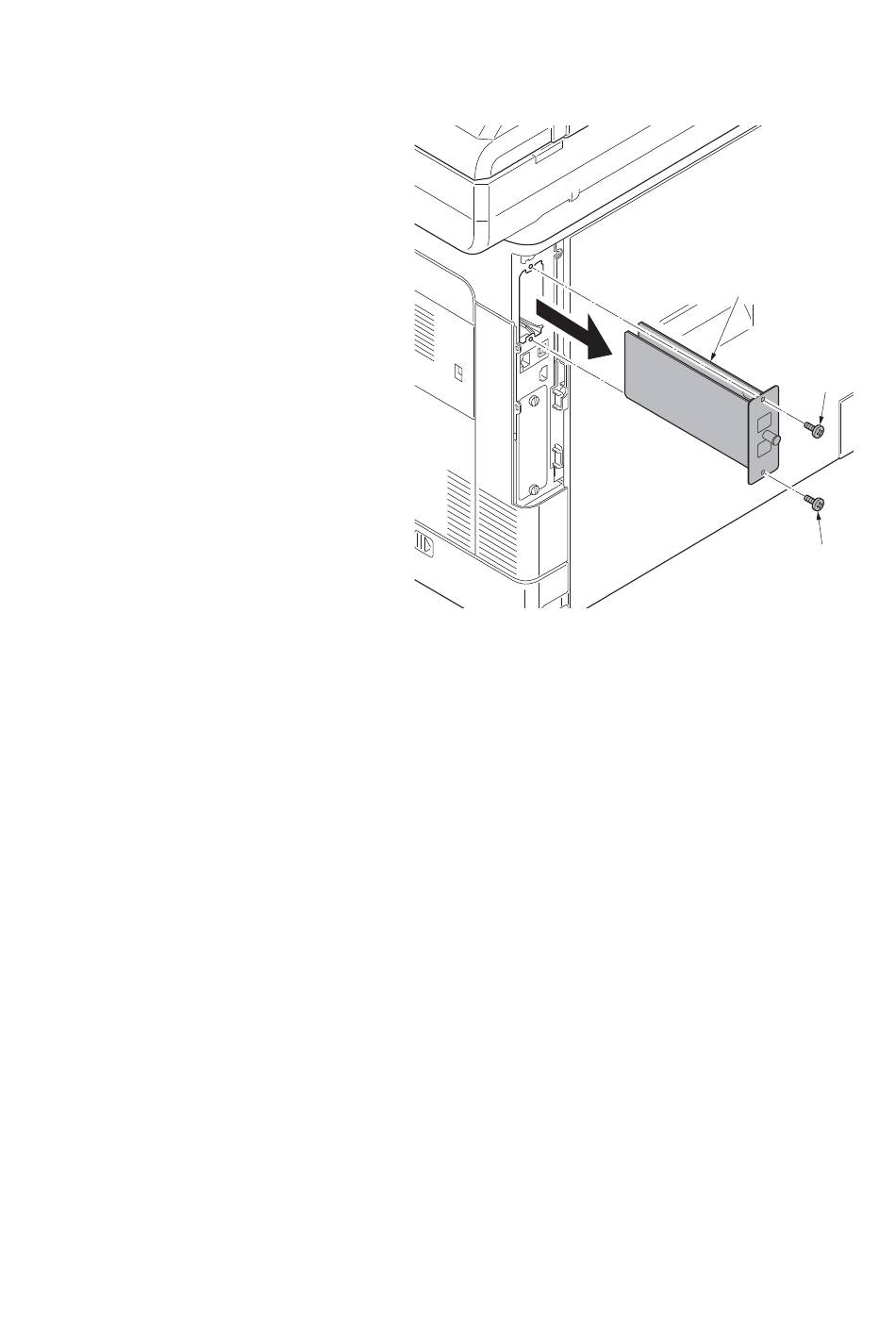

Figure 1-5-62
1-5-40
2PZ
FAX control PWB
Screw
Screw
