1-4 Troubleshooting

1-4-1 Paper misfeed detection

(1) Paper misfeed indication

When a paper misfeed occurs, the machine immediately stops printing and displays the paper misfeed mes-
sage on the operation panel. To remove paper misfed in the machine, pull out the cassette, open the rear
cover or paper conveying unit.

(2) Paper misfeed detection condition

Document
Processor
Paper jam location
A
Cassette 1
B
MP tray
C
Machine inside
D
Fuser/Eject sections
E
Duplex section
F
Cassette 2
G
Cassette 3
H
Document processor
Sensors
1
Registration sensor
2
MP paper conveying
sensor
3
Eject sensor
4
PF feed sensor 1
5
PF feed sensor 2
6
DP timing sensor
H
6
Machine
B
Paper feeder 1
Paper feeder 2

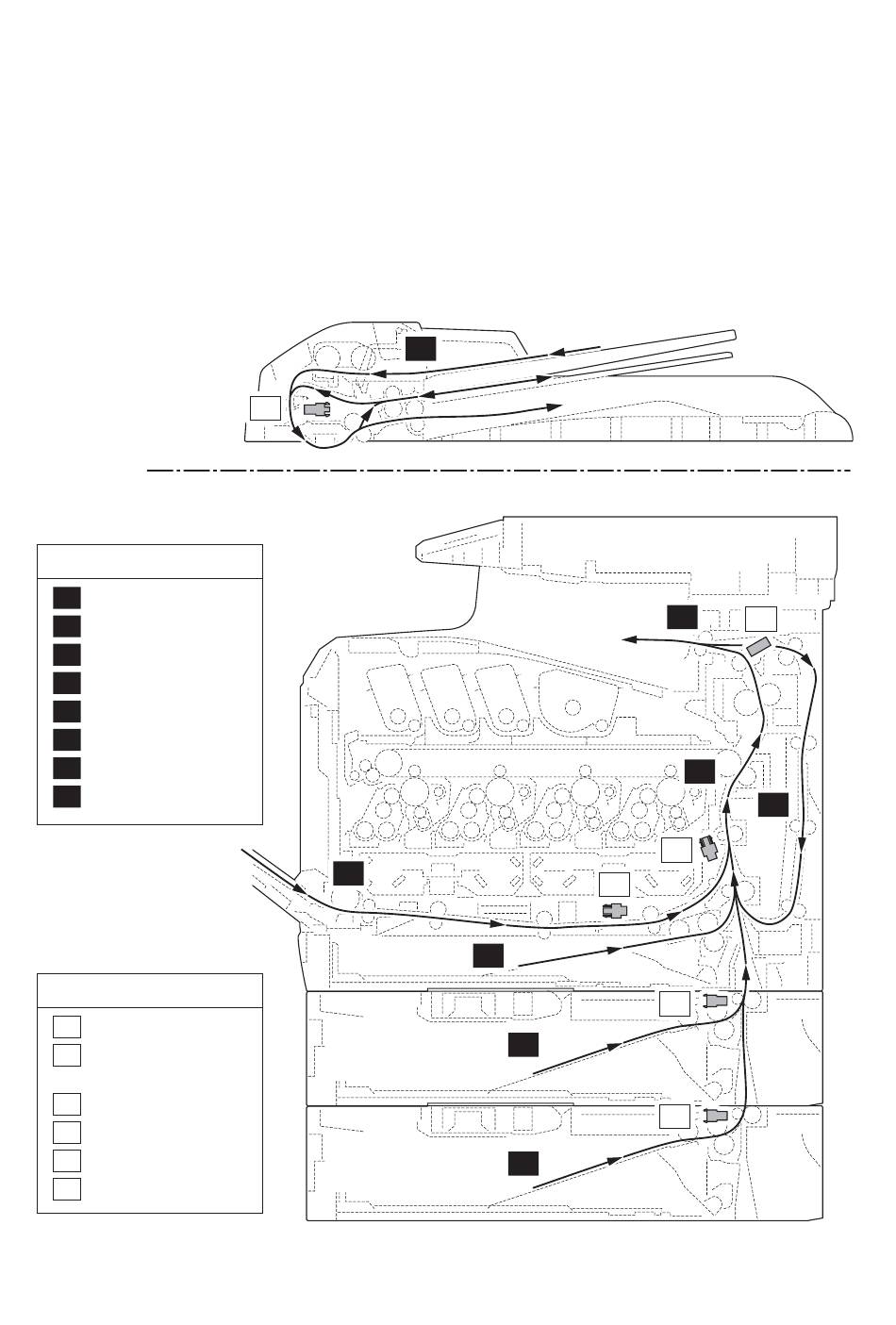

Figure 1-4-1 Paper jam location
1-4-1
2
A
F
G
2PZ
D
3
C
E
1
4
5
