2-1-8 Duplex conveying section

The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift
section to the paper feed/conveying section when duplex printing.
1. Duplex roller L
2. Eject pulley
3. Duplex rollers S
4
6
4
4

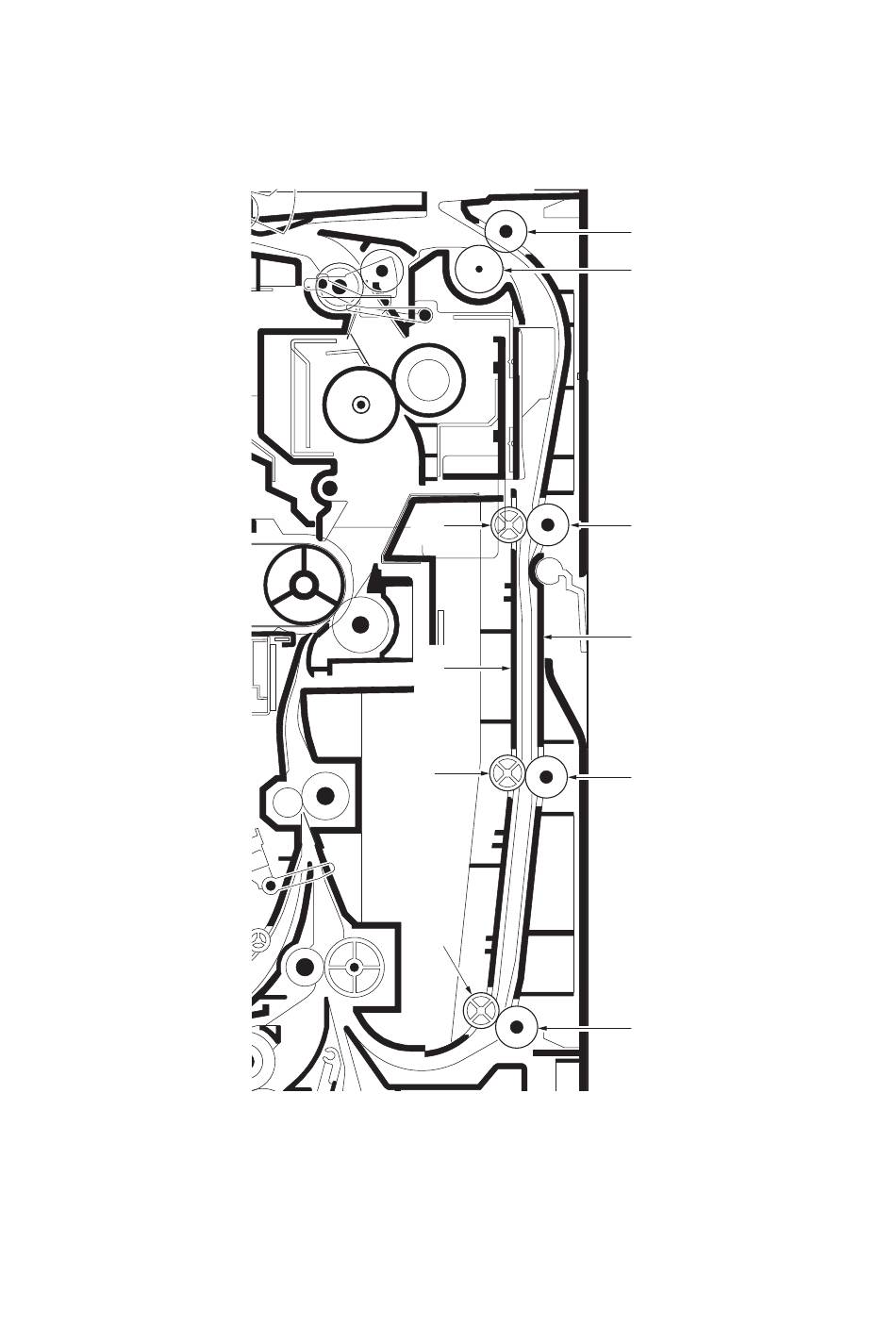

Figure 2-1-24 Duplex conveying section
2-1-23
1
2
3
5
3
3
4. Duplex pulleys
5. Duplex frame
6. Duplex feed guide
