(2) Detaching and refitting the DP paper feed pulley unit
Procedure
1. Open the DP top cover.
2. Remove the screw.
3. Release three hooks and then remove
the DP rear cover.
4. Release two hooks and then remove
the DP front cover.

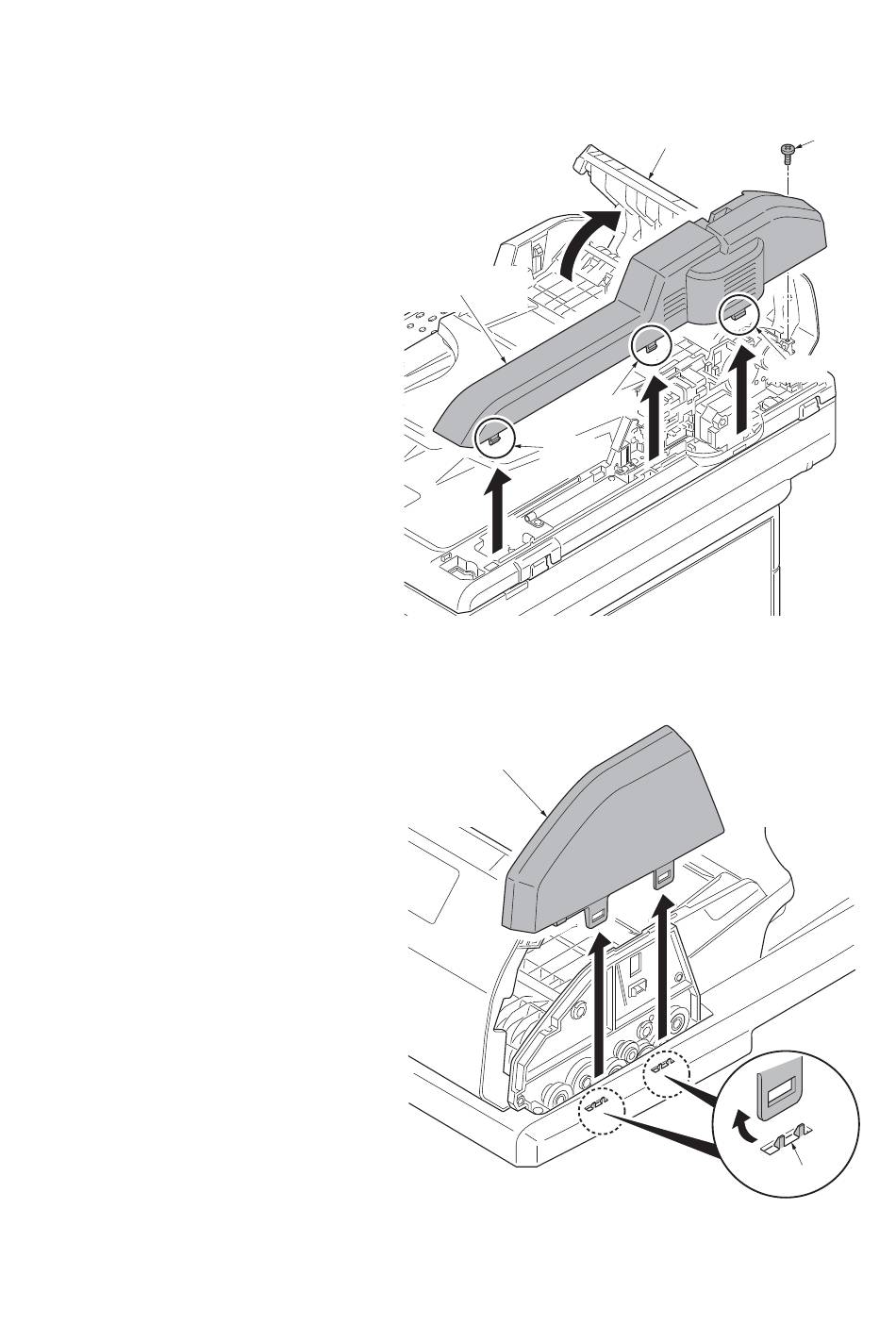

DP rear cover
Hook
DP front cover
1-5-86
DP top cover
Hook
Figure 1-5-142
Figure 1-5-143
2PZ
Screw
Hook
Hooks
