(2) Detaching and refitting the drum/developing drive unit

1. Remove drum units (K, M, C, Y) and

developing units (K, M, C, Y) (see page

1-5-22, 20).

2. Remove the rear upper cover, right

upper cover, left upper cover and front

cover (see page 1-5-3).

3. Remove the left rear cover, left cover

and left lower cover (see page 1-5-10).

4. Remove the engine PWB (see page 1-

5. Remove the screw and release the

hook, and then remove the container

6. Remove the screw and then remove the

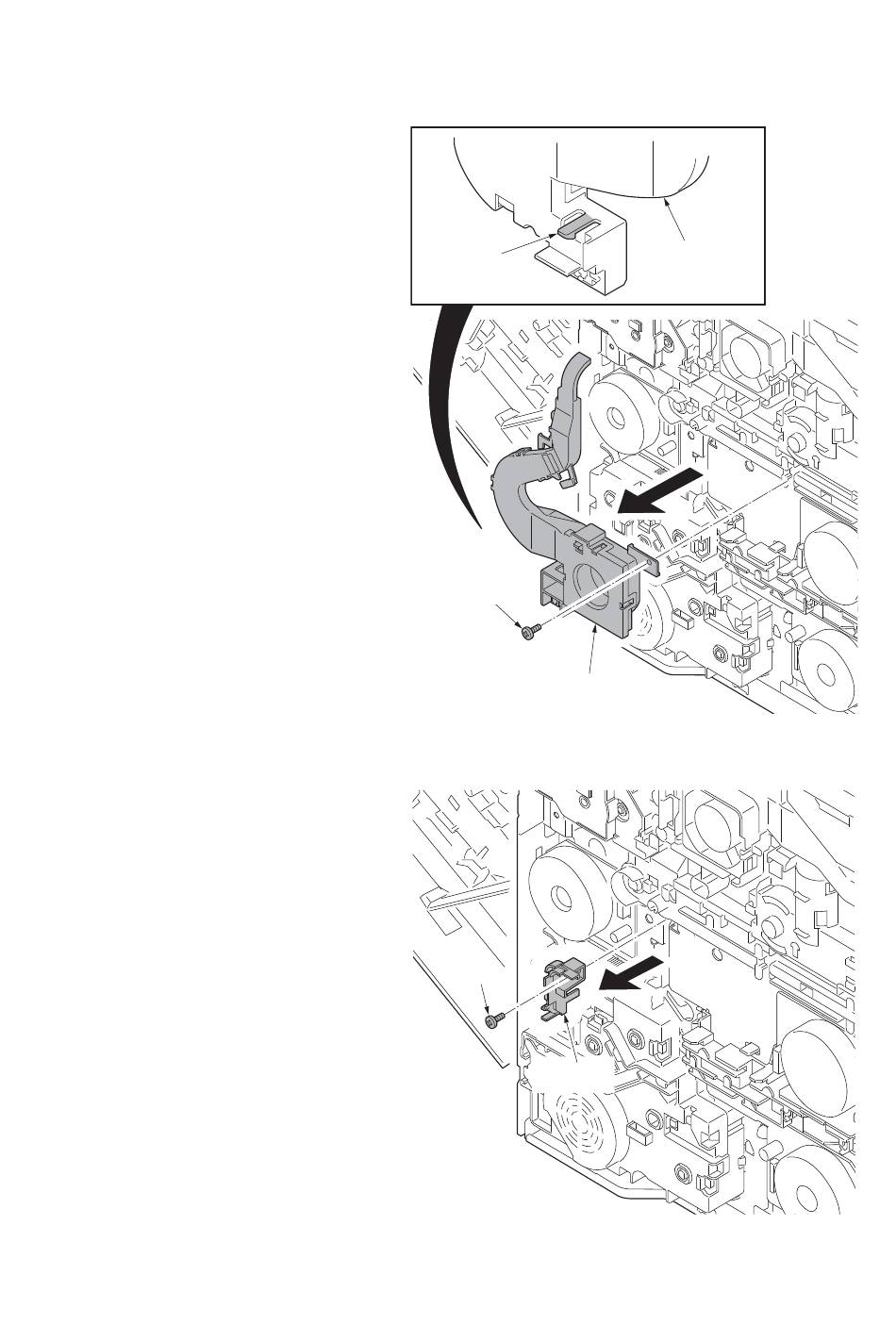

Figure 1-5-65

Figure 1-5-66
