(2) MP tray paper feed section

The MP tray can contain 50 sheets. Feeding from the MP tray is performed by the rotation of the MP paper
feed roller. Also, function of the MPF separation pad prevents paper from multiple feeding.
1. MP paper feed roller
2. MPF separation pad
3. MPF bottom plate
4. Friction pad
5. MPF feed roller
6. Feed pulley
9
8

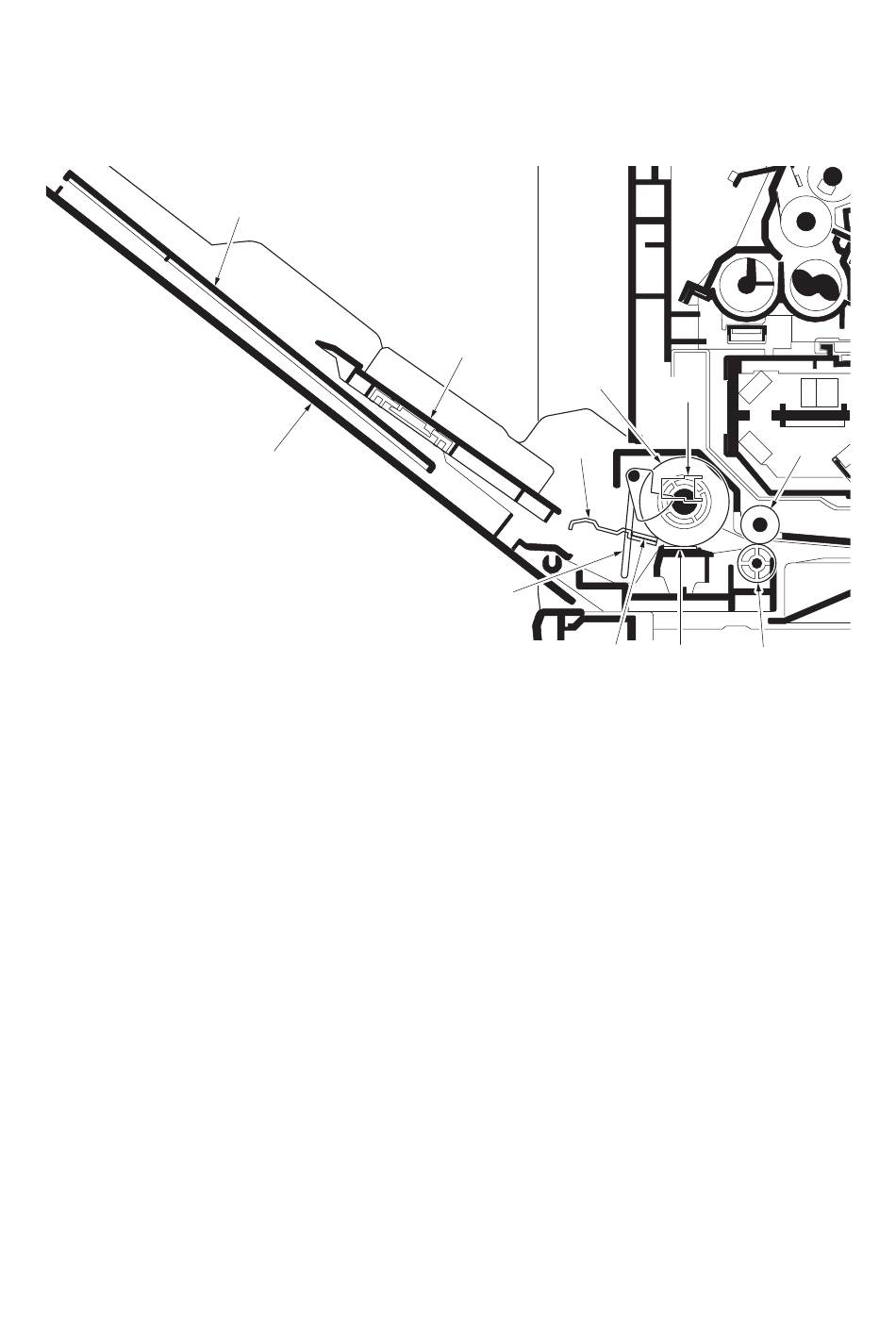

Figure 2-1-3 MP tray paper feed section
7
1
3
11
7. MPF base
8. MPF cover
9. MPF tray
10. MP paper sensor (MPPS)
11. Actuator (MP paper sensor)
2-1-3
