1-5-4 Developing section

(1) Detaching and refitting the developing unit

Procedure
1. Remove the intermediate transfer unit
(see page 1-5-23).
2. Remove drum units (K, M, C, Y).
3. Pinch the lever of developing unit.
4. Remove developing units (K, M, C, Y).
*: When you work the removed developer
unit, please put the developer unit on a
working table with the direction taken out
from the machine.
If top and bottom are carried out
reversely, developing powder may leak.

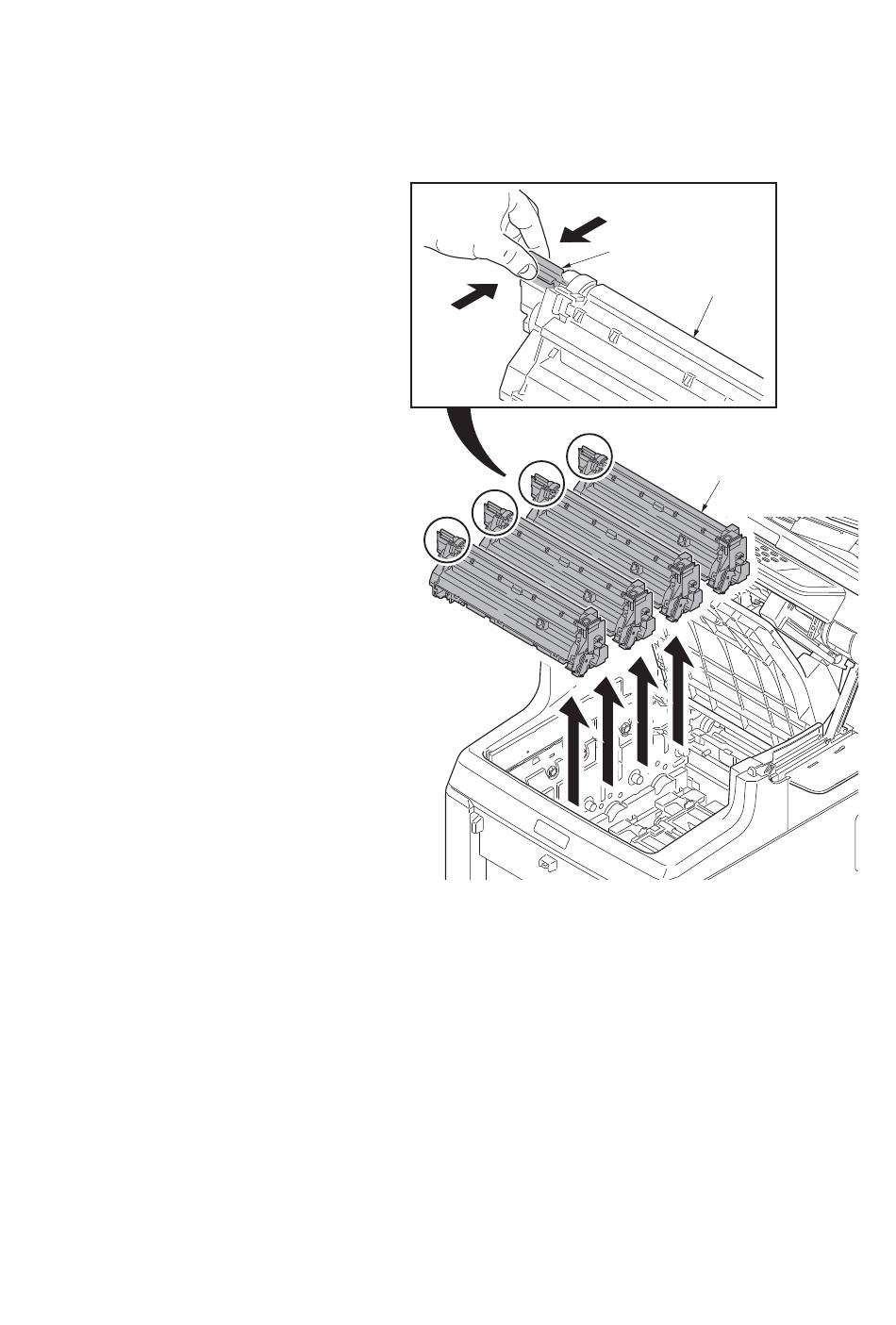

Figure 1-5-29
1-5-20
Lever
Developing unit
Developing unit
(K,M,C,Y)
