(2) Laser scanner section

The charged surface of the drum is then scanned by the laser beam from the laser scanner unit. The laser
beam is dispersed as the polygon motor (PM) revolves to reflect the laser beam over the drum. Various lenses
and mirror are housed in the laser scanner unit, adjust the diameter of the laser beam, and focalize it at the
drum surface. Also the LSU cleaning motor (LSUCM) is activated to conduct automatically cleaning of the
LSU dust shield glass.
5 4
6
1. Polygon motor (PM)
2. Polygon mirror
3. f- lens A
4. f- lens B
5. Mirror A
8
3
7

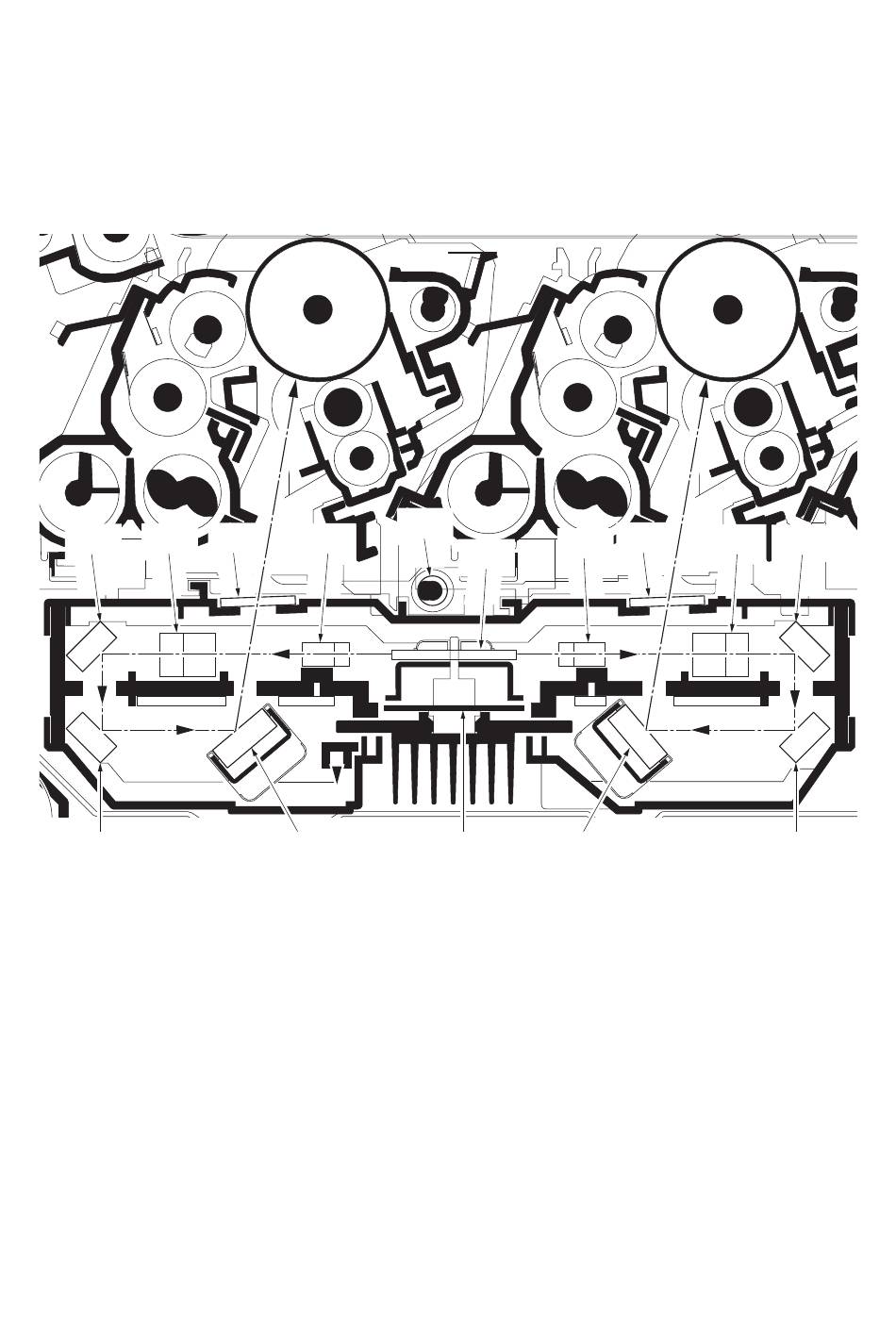

Figure 2-1-14 Laser scanner unit (LSU)
9
3
2
1 7
6. Mirror B
7. Mirror C
8. LSU dust shield glass
9. LSU spiral
2-1-14
8
4 5
6
