(2) Original conveying section

The original conveying section consists of the parts shown in figure. A conveyed original is scanned by the
optical section (CCD) of main machine when it passes through the DP contact glass of main machine.
1. Conveying roller A
2. Conveying pulley
3. Conveying bottom
4. Reading guide
6
2
3

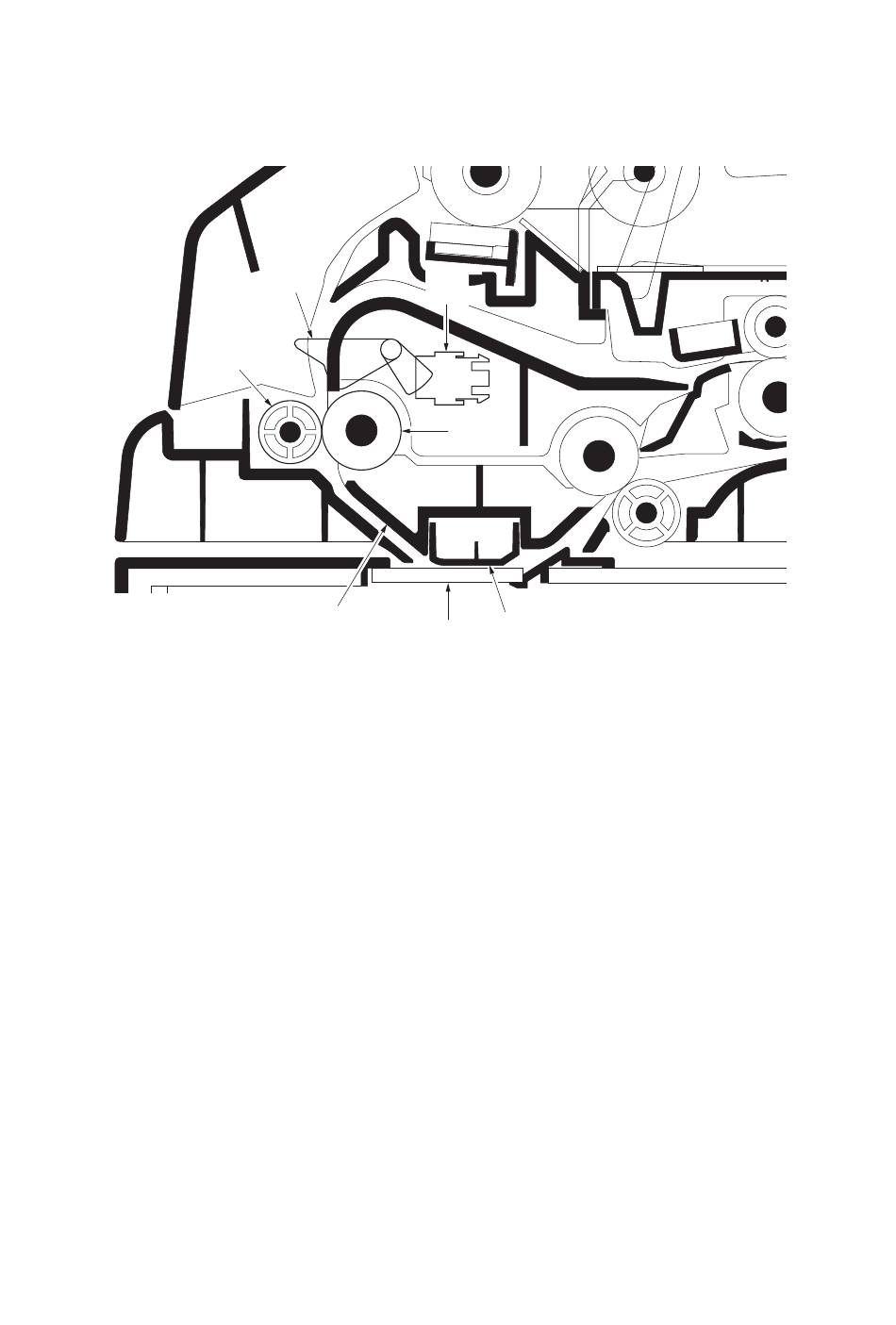

Figure 2-1-28 Original conveying section
5
1
4
7
5. DP timing sensor (DPTS)
6. Actuator (DP timing sensor)
7. DP contact glass
2-1-27
2PZ
