Chapter 2: Jumpers and Connectors

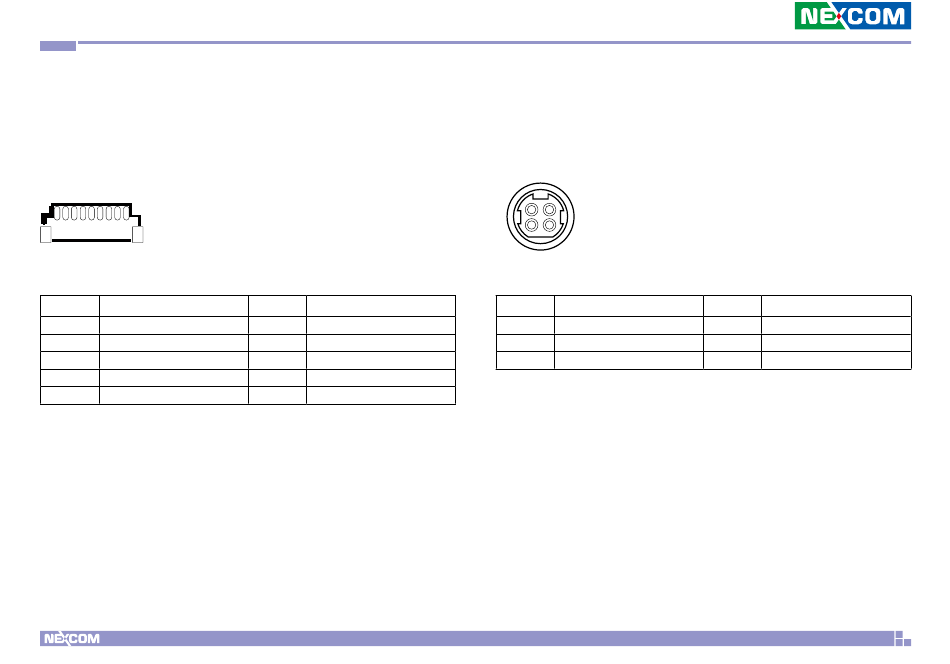

COM Port Connector
Connector type: 1x9 9-pin header, 1.0mm pitch
Connector location: COM1 & COM2
1
9
Pin
Definition
1
RI
3
RTS
5
GND
7
TXD
9
DCD
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
CTS
4
DSR
6
DTR
8
RXD
DC Power Input Jack (+12V only)
Connector location: DCIN2
1
2
3
4
5
Pin
Definition
1
+12VSUS
3
GND
5
CGND
13
Pin
Definition
2
+12VSUS
4
GND
XPPC 16-200 User Manual
