Chapter 2: Jumpers and Connectors

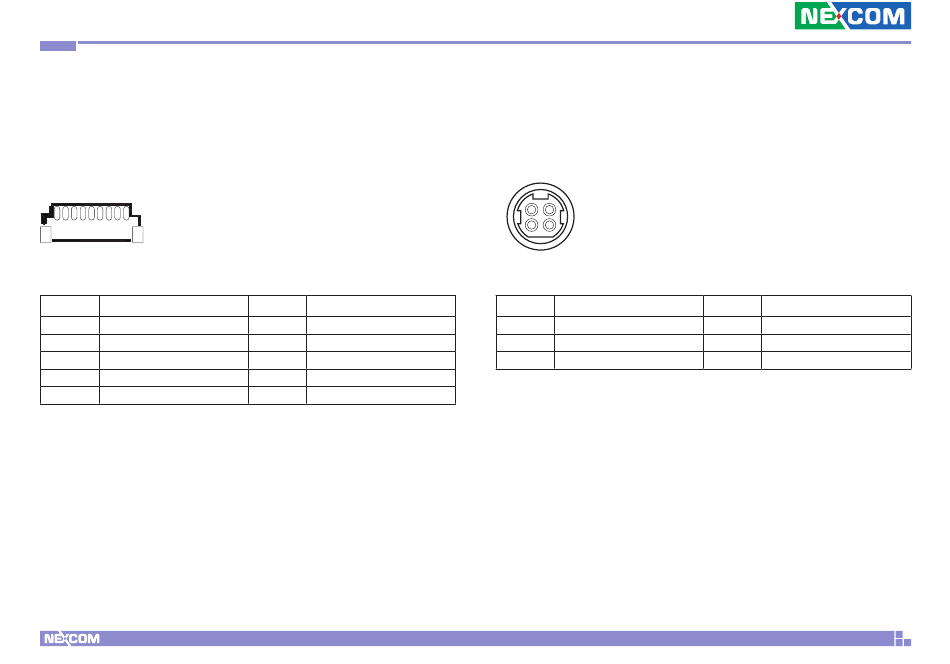

COM Port Connector

Connector type: 1x9 9-pin header, 1.0mm pitch
Connector location: COM1 & COM2
1 9
Pin Definition
1 RI
3 RTS
5 GND
7 TXD
9 DCD
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 CTS
4 DSR
6 DTR
8 RXD

DC Power Input Jack (+12V only)

Connector location: DCIN2
1 2
3 4
5
Pin Definition
1 +12VSUS
3 GND
5 CGND
13
Pin Definition
2 +12VSUS
4 GND
