ACM - Multicast Advanced Control Module USER MANUAL

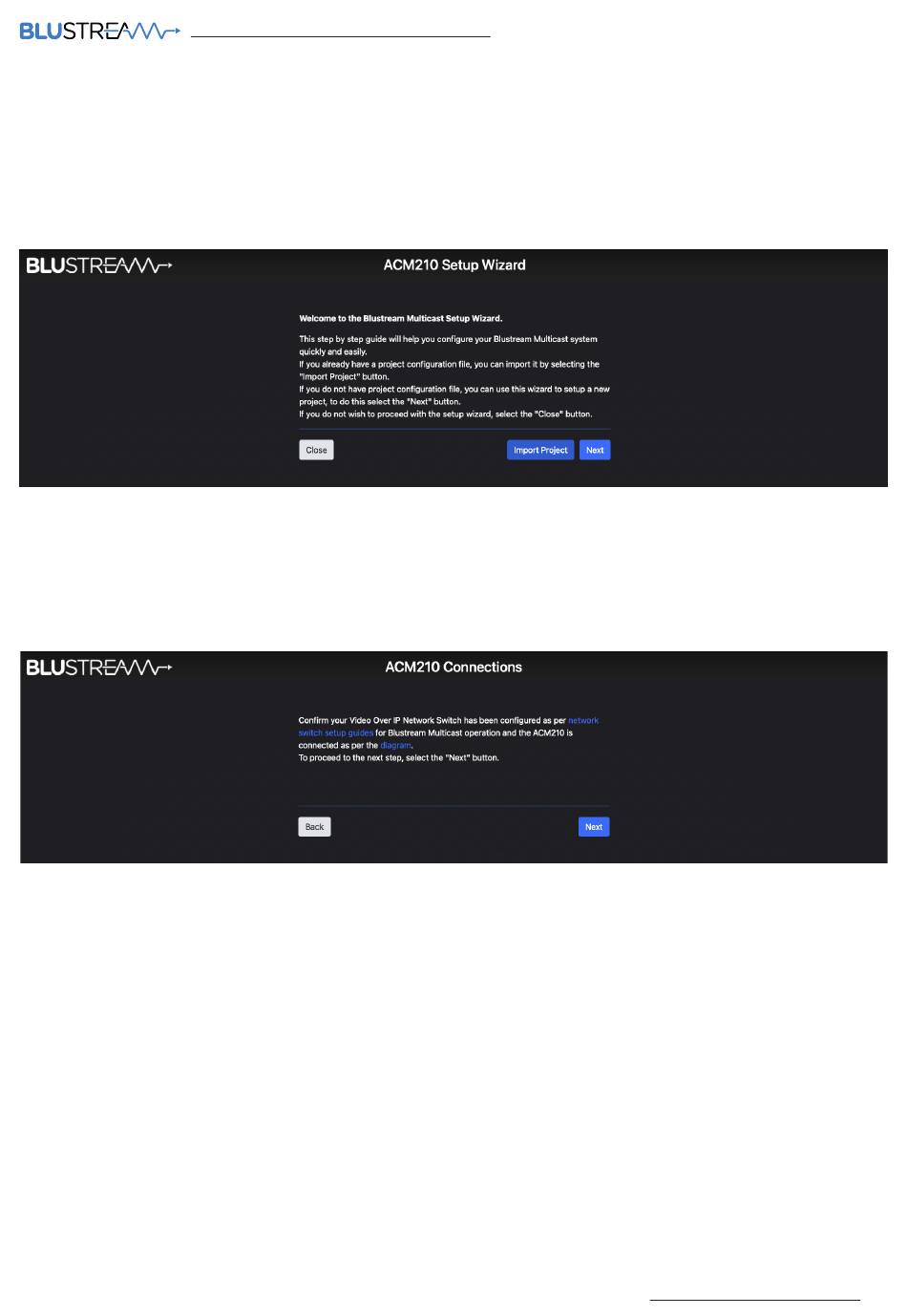

New Project Set-up Wizard
On first log in of the ACM, a Set-up Wizard for configuring all components of the Multicast system will be presented.
This has been designed to speed up new system configuration as all default / new Multicast Transmitters & Receivers
can be connected to the network switch at the same time, whilst not resulting in an IP conflict during the system
configuration. This results in a system in which all components are automatically and sequentially assigned a name
and IP address ready for basic system use.
The ACM Set-up Wizard can be cancelled by clicking 'Close'. Please be aware that the system will not be configured
at this point, but can be continued by visiting the 'Project' menu. If a Project File is already available (i.e. replacing an
ACM on an existing site), this can be imported by using the saved .json file by clicking 'Import Project'.
Click 'Next' to continue set-up:
If at this point the chosen Network hardware is not configured for use with a Blustream Multicast system, click on the
hyperlink 'network switch setup guides' to navigate to a centralised webpage containing common Network Switch
Guides.
An example schematic diagram for the connections of the ACM can be accessed by clicking the hyperlink marked
'diagram'. This will ensure the ACM is connected correctly to the wider Multicast system before the Set-up Wizard
begins. Once the connections of the ACM are confirmed, click 'Next'.
