BluStream Multicast ACM200 User Manual page 12

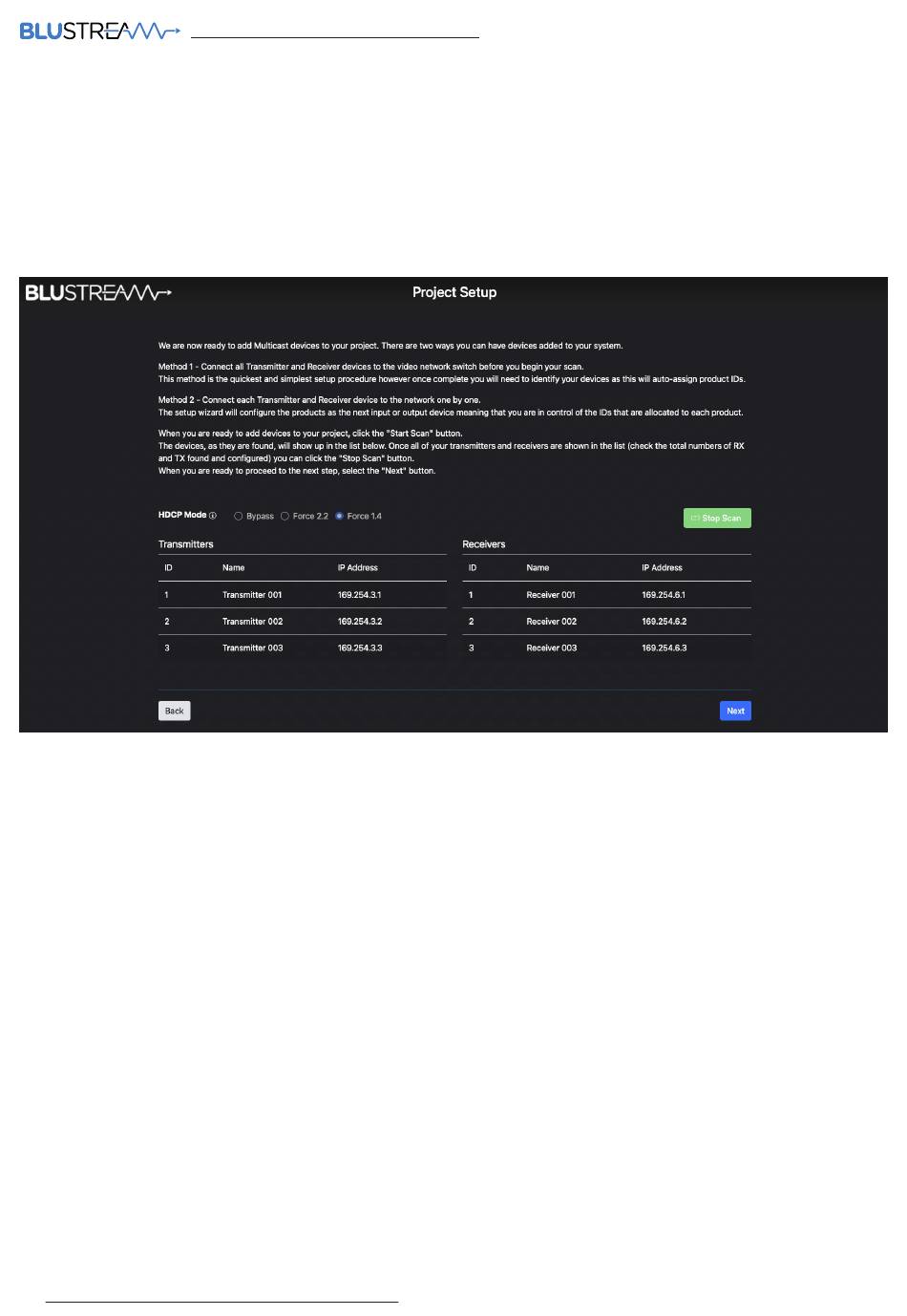

New Project Set-up Wizard - continued...
Once the set-up method to configure the system has been chosen, hit the 'Start Scan' button.
The ACM will search for new Blustream Multicast units on the network, and will continue to search for new devices
until such time as:
- The green 'Stop Scan' button is pressed
- The blue 'Next' button is pressed to progress the Set-up Wizard once all units have been found
As new units are found by the ACM, the units will populate to the relevant columns marked Transmitters or Receivers.
It is recommended to label the individual units at this point.
The Multicast units will be configured with the new IP address information at this point, and will reboot automatically.
Once all units have been found and configured, click 'Stop Scan', then 'Next'.
12
ACM - Multicast Advanced Control Module
www.blustream.co.uk / www.blustream.com.au / www.blustream-us.com
USER MANUAL
