Web-GUI - Video Wall Configuration - continued...
The menu page for the new Video Wall array has the following options:
1. Back - returns to the previous page for creating a new Video Wall.
2. Update Name - amend the name given to the Video Wall array.
3. Screen Settings - adjustment of bezel / gap compensation of the screens being used. See next page for more details on
Bezel settings.
4. Group Configurator - there are options to be able to create multiple configurations (or 'presets') for each Video Wall array
within the Multicast system. The grouping / preset allows for the Video Wall to be deployed in multiple ways i.e. grouping
different numbers of screens together to create different sized walls within a single array.
5. Toggle OSD - turn On / Off the OSD (On Screen Display). Toggling the OSD On will show the ID number (i.e. ID 001) of the
Multicast Receiver on each display connected to the Receiver as an overlay to the media being distributed. Toggling OSD Off
removes the OSD. This allows easier identification of displays within a Video Wall during configuration and set-up.
Display / Receiver Assign:

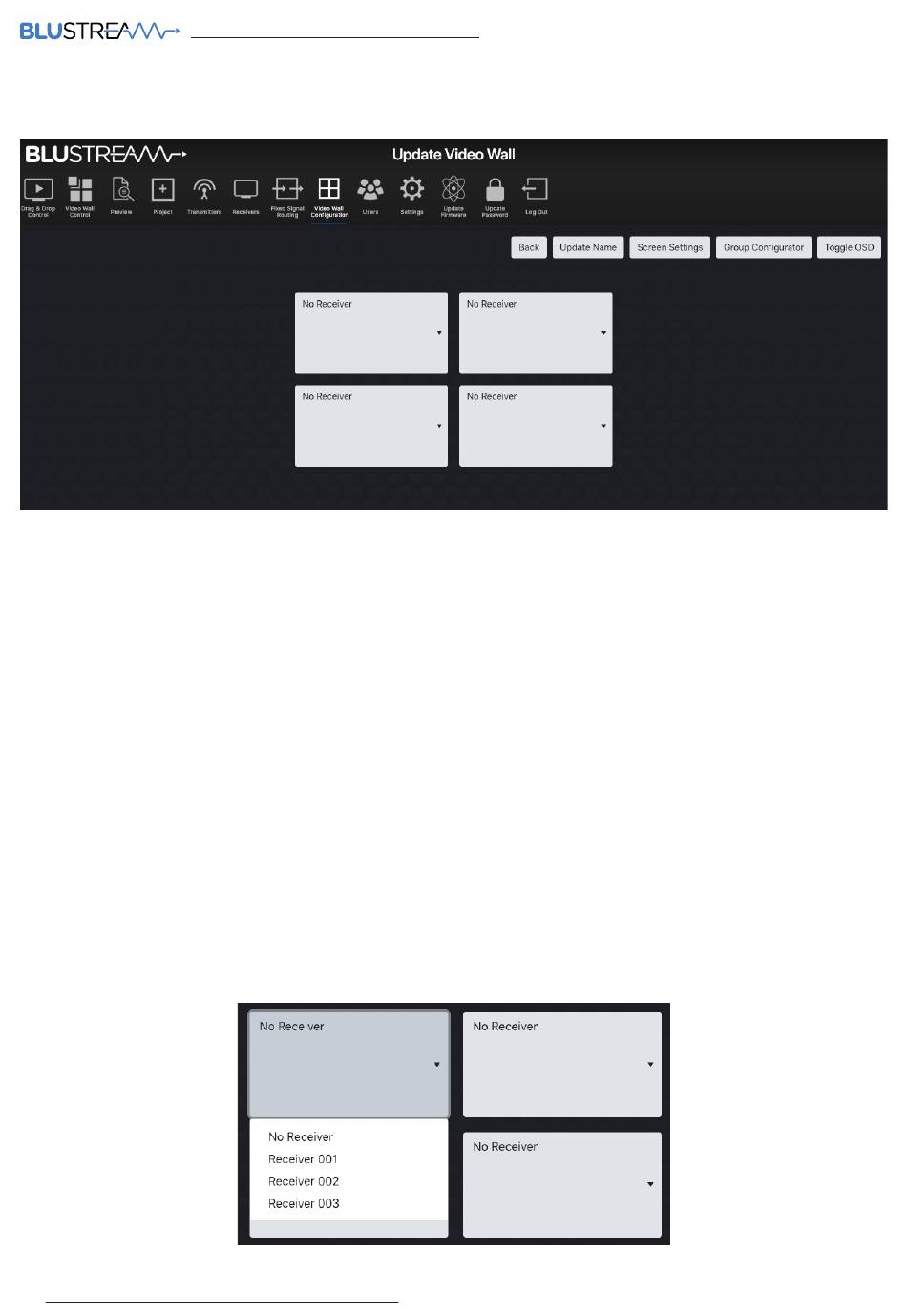

The ACM will create a visual representation of the Video Wall onto the page. Use the drop down arrows for each screen to select
the relevant Multicast Receiver product connected to each screen on the Video Wall array.
