Web-GUI - Menu Overview

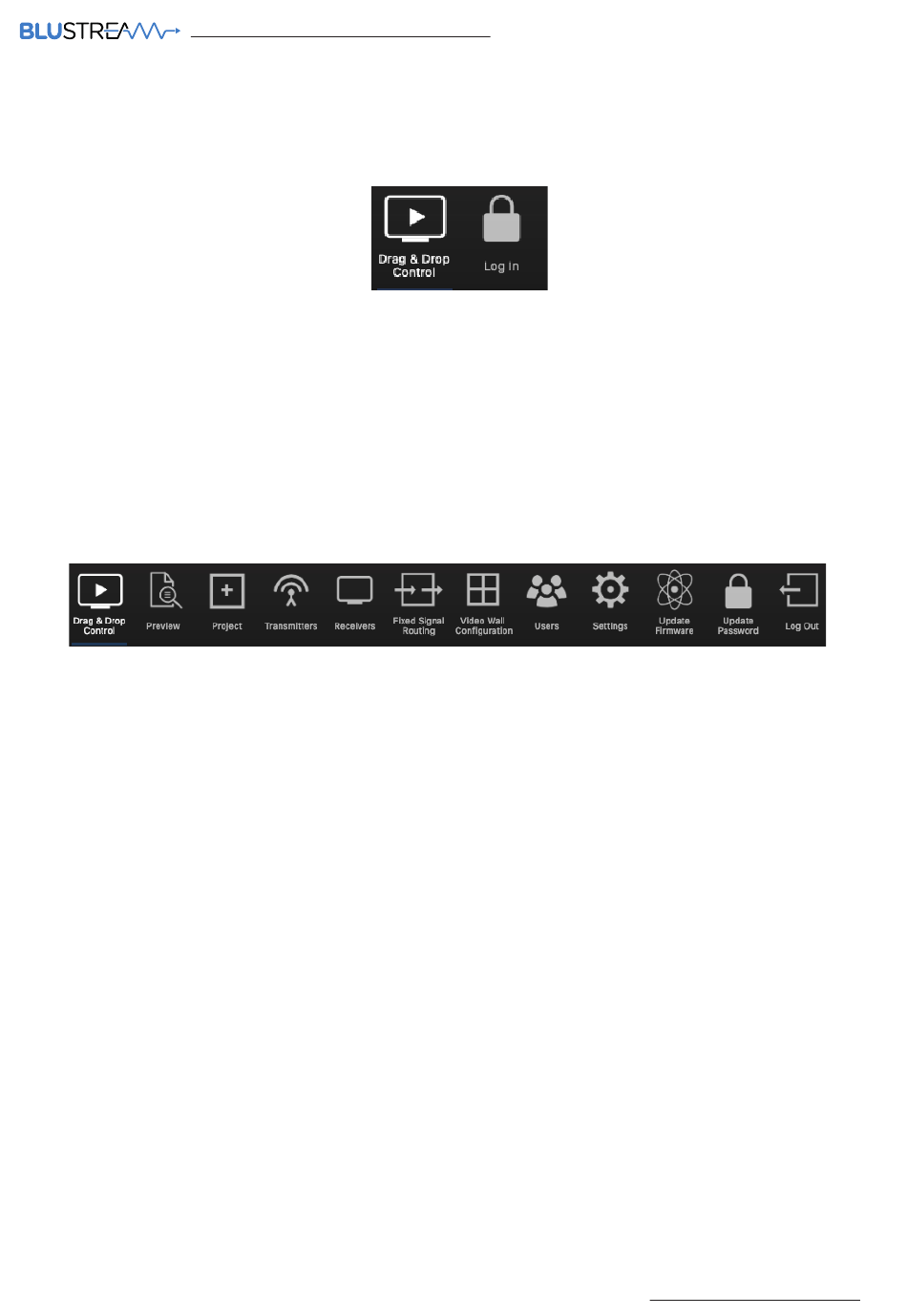

The 'User Interface' menu gives a guest user the ability to switch and preview the Multicast system without allowing
access to any settings that can amend the overall infrastructure of the system.
1. Drag & Drop Control - control of source selection for each Multicast Receiver including image preview of source
devices throughout the system
2. Video Wall Control - used for 'Drag & Drop' control of source selection for video wall arrays within the system,
including image preview of source devices throughout. Menu item only available where a video wall has been
configured within the system
3. Log In - used to log into the system as a User, or Administrator
The Administrator menu is accessed from a single password as set during initial set up. This menu allows for a
Multicast system to be completely configured, with access to all settings and features of the system.
Please note: it is not recommended to leave Administrator access or the Administrator password with an end user.
1. Drag & Drop Control - control of source selection for each Receiver including image preview of source devices
2. Video Wall Control - control of source selection for video wall arrays, including image preview of source devices
3. Preview - show the active video stream from any connected Transmitter and/or Receiver
4. Project - view or configure a new or existing Blustream Multicast system
5. Transmitters - summary of all Transmitters installed, with options for EDID management, checking FW version,
updating settings, adding new TX's, replacing or rebooting products
6. Receivers - summary of all Receivers installed, with options for resolution output (HDR / scaling), function (video
wall mode / matrix), updating settings, adding new RX's, replacing or rebooting products
7. Fixed Signal Routing - configure independent routing of Video, Audio, IR, Serial, USB, or CEC signals
8. Video Wall Configuration - set-up and configuration of Receivers to create a video wall array of up to a size of 9x9,
including: bezel / gap compensation, stretch / fit, and rotation. (Please note: video walls are not supported with
IP50HD systems).
9. Users - set-up or manage users of the system
10. Settings - system settings including: network credentials, clearing project, and resetting the ACM
11. Update Devices - apply the latest firmware updates to the ACM, and connected Transmiters / Receivers
12. Update Password - update Administrator password credentials for access to the ACM web-GUI
13. Log Out - log out the current User / Administrator
