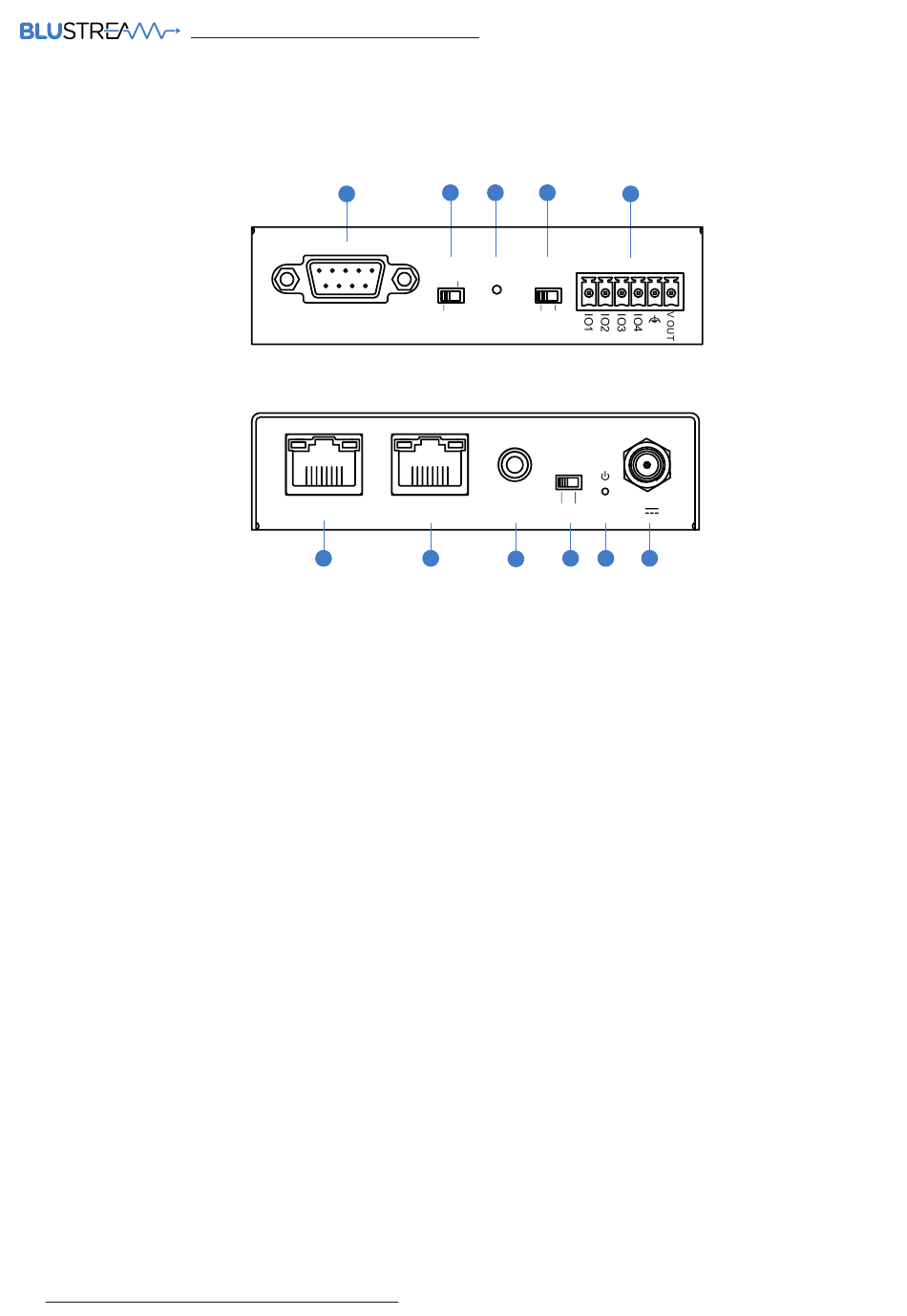

Panel Descriptions - ACM200 & ACM210
Front Panel
Rear Panel
RS-232 control port – connect to a third party control
1
device for control of the Multicast system using RS-
232.
MCU Upgrade toggle - use when upgrading MCU
2
firmware only. Leave in normal position for
standard operation.
Reset - short press resets the ACM, long press (10
3
seconds) factory defaults the ACM.
IO Level switch - reserved for future use.
4
IO Level phoenix - reserved for future use.
5
Video LAN (PoE) - connect to the network switch that
6
the Blustream Multicast components are connected
to.
04
2
1
RS-232 NORMAL
PoE LINK LINK
VIDEO LAN (PoE) CONTROL LAN
6 7
www.blustream.co.uk / www.blustream.com.au / www.blustream-us.com
ACM - Multicast Advanced Control Module
3 4
MCU IO LEVEL
RESET 5V 12V
IR
IR CTRL 5V 12V 12V
9 10
8
Control LAN port - connect to existing network that
7
a third party control system resides on. The Control
LAN port is used for Telnet/IP control of the Multicast
system. Not PoE.
IR Ctrl (IR input) – 3.5mm stereo jack. Connect to
8
third party control system if using IR as the chosen
method of controlling the Multicast system. When
using the included 3.5mm stereo to mono cable,
ensure the cable direction is correct.
IR - adjust IR voltage level between 5V or 12V input
9
for IR Ctrl.
Power LED indicator
q
Power port – use 12V 1A DC adaptor (sold separately)
w
if not using a PoE network switch.
USER MANUAL
5
ACM210
1A
11
