Web-GUI - Video Wall Control

To assist wth simplified Video Wall switching control, there is a separate Video Wall Drag & Drop Control page. This
menu option is only available once a Video Wall has been configured within the ACM / Multicast system.

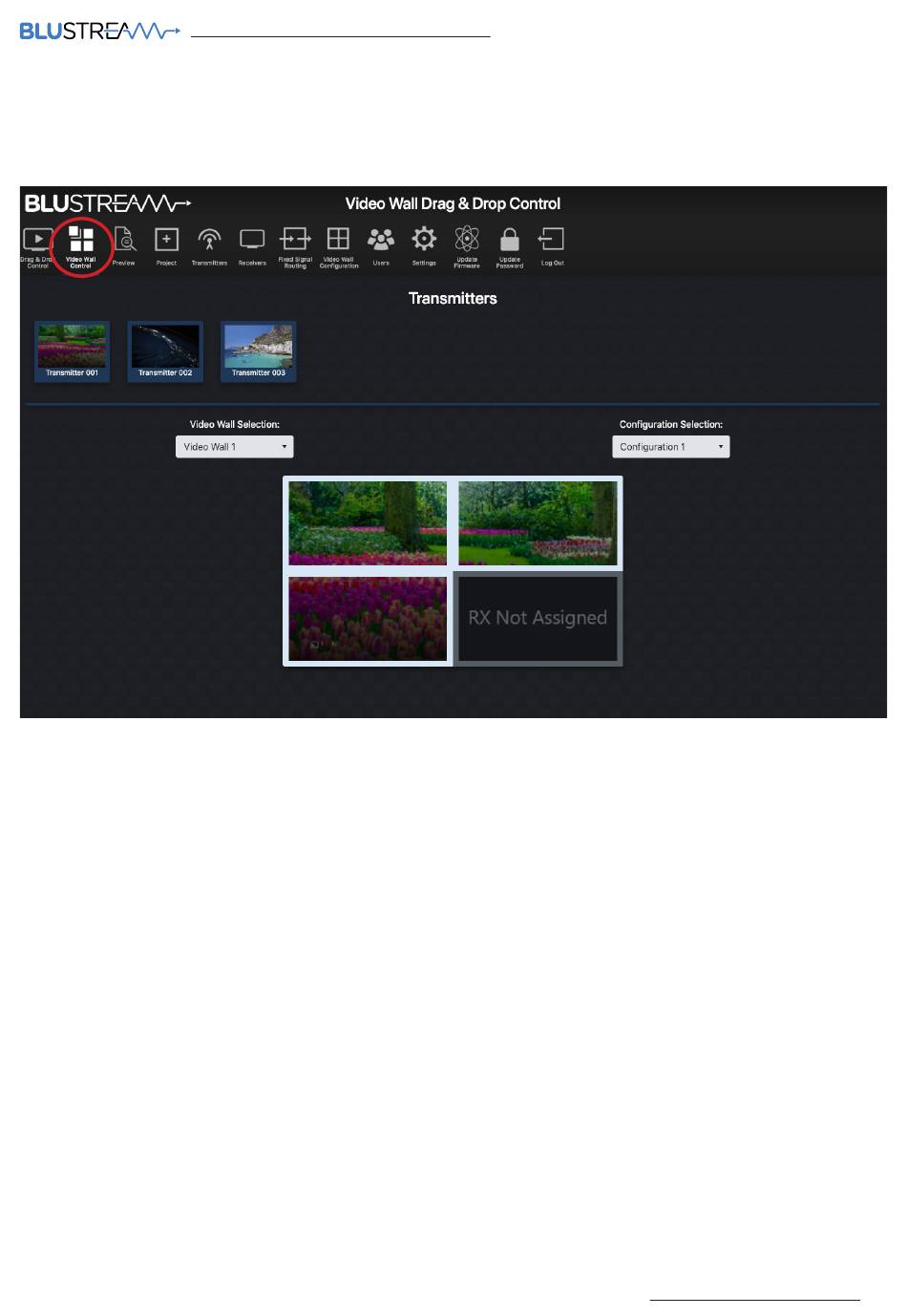

The source (Transmitter) preview windows are shown at the top of the page with the graphical representation of
the Video Wall displayed below. To switch the Video Wall array from one source to another, Drag & Drop the source
preview window onto the Video Wall preview underneath. This will switch all connected screens within the Video
Wall (within a group within a Video Wall only) to the same source / Transmitter in the Configuration that is currently
selected (in a group). Or Drag & Drop a Transmitter preview onto a 'Single' screen when the Video Wall array is in an
individual screen configuration.
Blustream Multicast systems can have multiple Video Walls (IP2xxUHD, or IP3xxUHD systems only). Selecting a
different Video Wall array, or to deploy a pre-defined Configuration / preset for each Video Wall can be carried out by
using the drop down boxes above the graphical representation of the Video Wall. This graphical representation will
automatically update as you select a different Video Wall or Configuration.
Should a screen within a Video Wall display on the GUI show 'RX Not Assigned', this means that the Video Wall does
not have a Receiver unit assigned to the array. Please revert back to the Video Wall set up to assign the Receiver
accordingly.
For the advanced API commands for control of Video Wall arrays within a system, please refer to the API Command
document available to download from the Blustream website.
