ACM - Multicast Advanced Control Module USER MANUAL
New Project Set-up Wizard - continued...
4. Scaler - adjust the output resolution using the built-in video scaler of the Multicast Receiver. The Scaler is capable
of both upscaling and downscaling the incoming video signal.

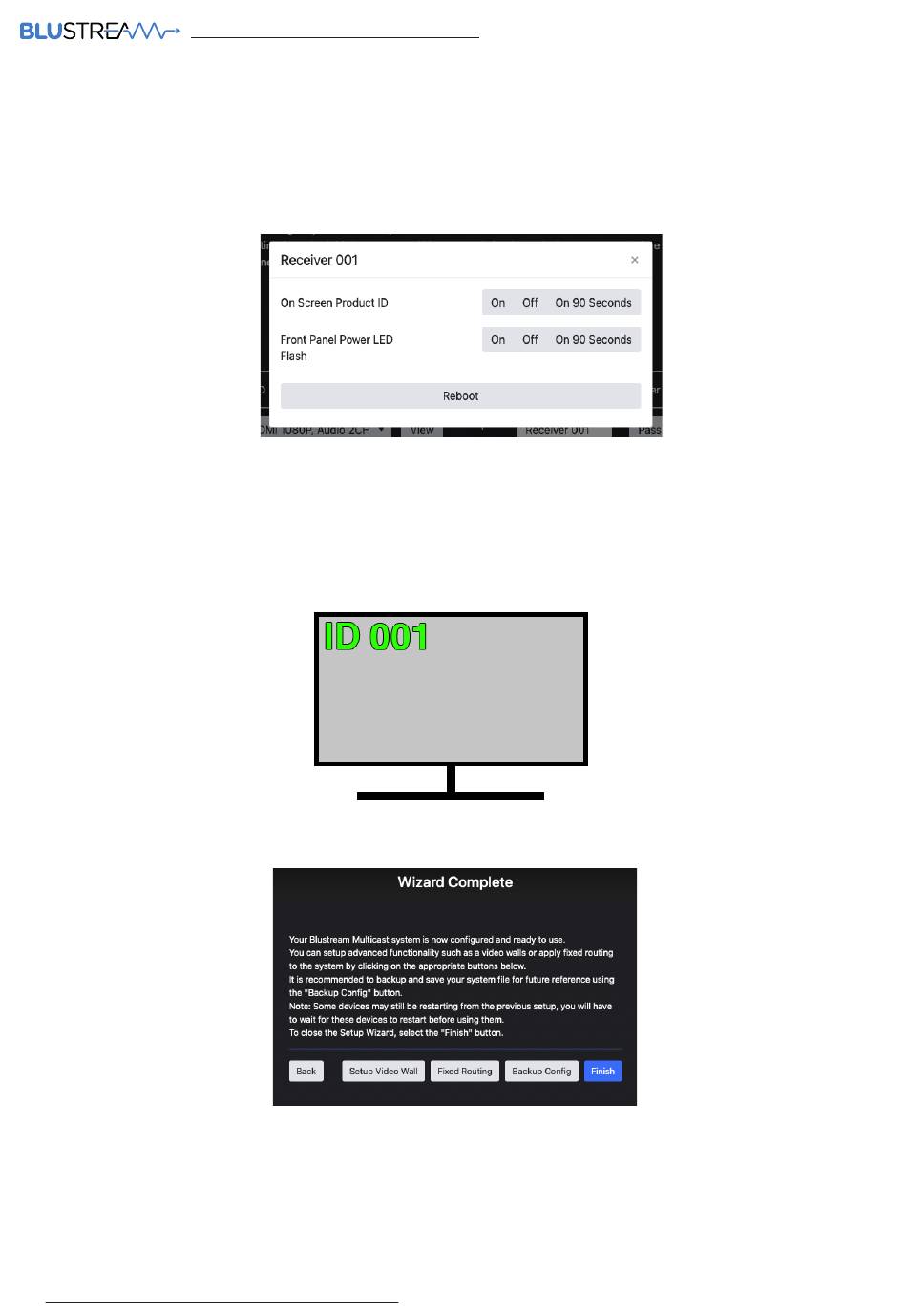

5. Actions - opens the following pop-up:
By default, during configuration, an OSD will appear on all screens connected to Receiver units for simple identification
of Receivers. The ability to also identify individual units by flashing the front panel Power LED's, and the ability to
Reboot the unit is contained here.
7. Turn OSD Off / On - toggles the product ID onto all connected screens / displays (on by default during
configuration - the OSD will turn off automatically as the wizard progresses).
8. Next - continues to the Set-up Wizard Completion page
The Wizard Completion page finalises the basic configuration process, providing commonly used links for advanced
set-up options for Video Walls (not available for IP50HD systems), Fixed Signal Routing (IR, RS-232, Audio etc), and the
ability to back-up to a configuration file (recommended).
Click 'Finish' once completed to continue to the 'Drag & Drop Control' page.
