Introduction
FEATURES:
• Web interface module for configuration and control of the Blustream SDVoE 10GbE Multicast system
• Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
• Advanced signal management for independent routing of IR, RS-232, CEC, USB/KVM, audio and video
• Auto system configuration
• 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independent IP address per LAN connection
- Allows simplified TCP / IP control of Multicast system
• Dual RS-232 ports for control of the Multicast system or pass-through of control to remote third party devices
• 5V / 12V IR integration for control of Multicast system
• PoE (Power over Ethernet) to power Blustream product from PoE switch
• Local 12V power supply (optional) should Ethernet switch not support PoE
• Support for IOS and Android App control
• 3rd party drivers available for all major control brands
Contact:
support@blustream.com.au
ACM500
Quick Reference Guide
Our UHD SDVoE Multicast distribution platform allows distribution of the highest
quality, uncompromised 4K with zero latency Audio/Video over copper or optical
fibre 10GbE networks.

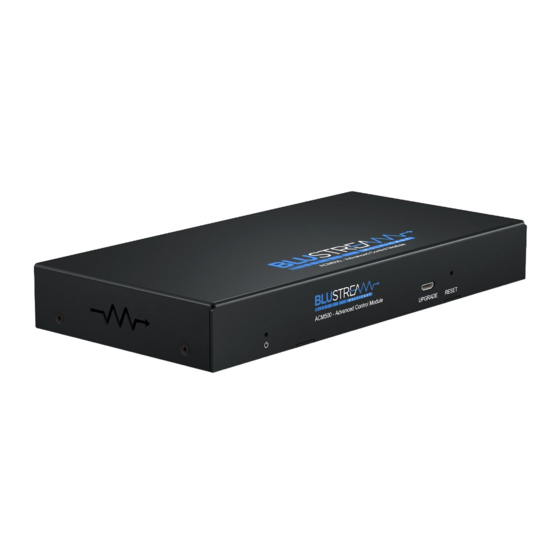

The ACM500 Control Module features advanced third party control of the SDVoE
10GbE Multicast system using TCP/IP, RS-232 and IR. The ACM500 includes a web
interface module for control and configuration of the Multicast system and features
'drag and drop' source selection with video preview and independent routing of IR,
RS-232, USB / KVM, Audio and Video. Pre-built Blustream product drivers simplify
Multicast product installation and negate the need for an understanding of complex
network infrastructures.
|
support@blustream-us.com
|
support@blustream.co.uk
ACM500
QUICK REFERENCE GUIDE
01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BluStream ACM500
Summary of Contents for BluStream ACM500
- Page 1 FEATURES: • Web interface module for configuration and control of the Blustream SDVoE 10GbE Multicast system • Intuitive ‘drag & drop’ source selection with video preview feature for active monitoring of system status • Advanced signal management for independent routing of IR, RS-232, CEC, USB/KVM, audio and video •...
- Page 2 Password: The first time the ACM500 is signed into, you will be prompted to set a new Admin password. Please insert a new password, confirm your new password, and ensure this is kept safe. The ACM500 will require the unit to be signed into again using the new Admin password.
- Page 3 Please read and understand the instructions in this and the manual available online, and ensure that the network switch is configured correctly prior to connecting any Blustream Multicast products. Failure to do so will result in problems with configuration of the system, and video performance.
- Page 4 PoE or 12V 1A DC (sold separately) - where PoE not delivered by LAN switch NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate. Package Contents • 1 x ACM500 • 1 x IR Control Cable - 3.5mm to 3.5mm Cable • 1 x Mounting kit •...
