Web-GUI - Drag & Drop Control
The Drag & Drop Control page is used to quickly and intuitively change a source input (Transmitter) for each (or
All) display (Receiver). The naming convention of the Transmitters and Receivers will be updated as per the names
assigned during configuration, or as have been updated in the Transmitter or Receiver pages.
Once the system has been fully configured the Drag & Drop Control page will show all online Transmitter and Receiver
products. All Multicast products will display the active stream from the device, which refreshes every few seconds.
Due to the size of the display window on certain phones, tablets or laptops, should the number of Transmitters and
Receivers be larger than the size available on screen, the User is given the ability to scroll / swipe through available
devices (left to right).

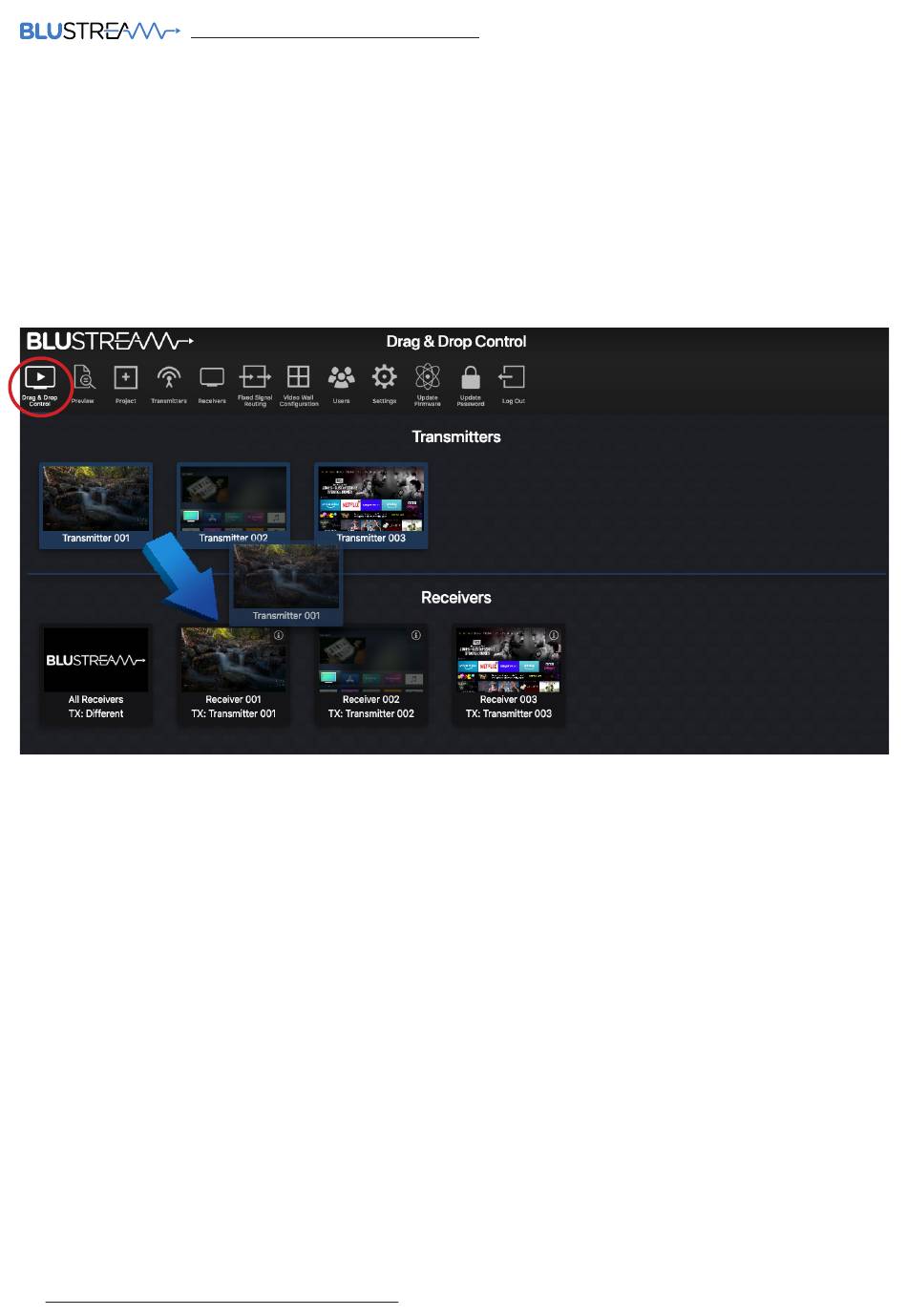

To switch sources, click on the required source / Transmitter, and drag the preview onto the required Receiver preview.
The Receiver preview window will update with the stream of the source selected.
The Drag & Drop switch will amend the Video/Audio stream from Transmitter to Receiver, but not Fixed Routing of
control signals.
Should 'No Signal' be displayed in the Transmitter preview window, please check the HDMI source device is powered
on, outputting a signal, and is connected via HDMI cable to the Transmitter. Check also the EDID settings of the
Transmitter device are applicable with the source being used.
Should 'No Signal' be displayed inside the Receiver preview window, check the unit is connected and powered from
the network (switch), and has a valid connection to a working Transmitter unit.
Should 'No Display' be shown inside the Receiver preview window, check the connected display is powered and has a
valid HDMI connection to the Receiver.
There is an 'All Receivers' window located on the left of the Receivers window. Dragging and dropping a Transmitter
onto this window will change the routing for ALL Receivers within the system to watch the source selected. Should the
preview of this window show the Blustream logo, this signifies that there is a mixture of sources being watched across
the Receivers within the system. The note underneath 'All Receivers' will display: 'TX: Different' to signify this.
Please note: the Drag & Drop Control page is also the home page for an active Guest user of the Multicast system -
only sources that the Guest or User have permission to view will be visible.
Receivers in Video Wall Mode are not displayed on the Drag & Drop page.
