Web-GUI - Receivers

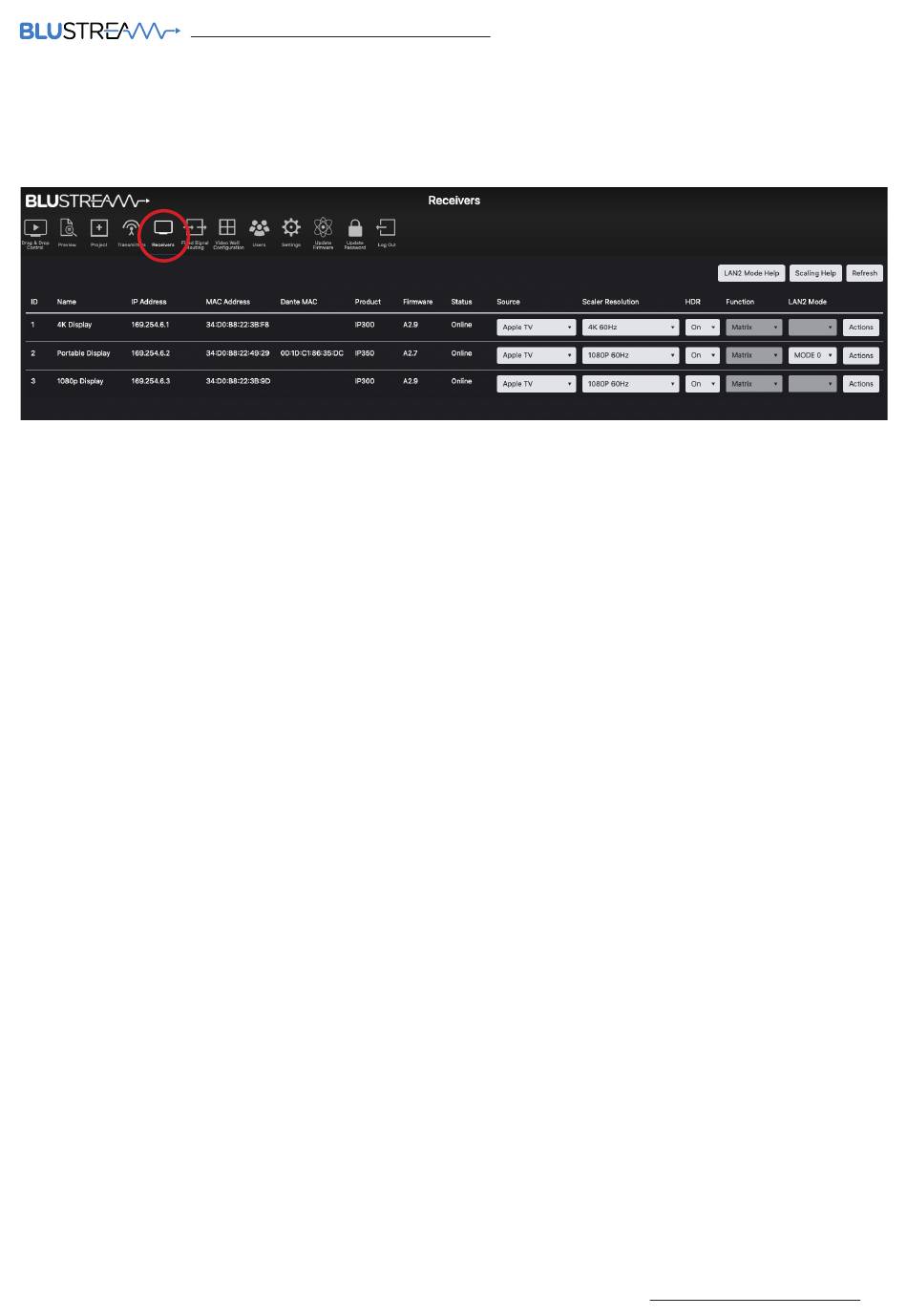

The Receiver summary window shows an overview of all the Receiver devices that have been configured within the
system, with the ability to update the system as required.
Features of the Receiver summary page include:
1. ID - the ID (output) number is used for control of the Multicast system when using third party control platforms.
2. Name - the name of the Receivers (typically the device attached to the Receiver) are automatically assigned
default names i.e. Receiver 001 etc. Receiver names can be amended within the Device Setup page (within the
Wizard), or by clicking on the 'Actions' button for an individual unit (see next page).
3. IP Address - the IP address assigned to the Receiver during configuration.
4. MAC Address - shows the MAC address of the Receiver (LAN 1 port).
5. Dante MAC - shows the MAC address of the LAN2 port where independent Dante connectivity is being used. Please
see the button marked LAN2 Mode Help for further explanation on segregating Video and Dante networks.
6. Product - identifies the product in use that is connected to the system.
7. Firmware - displays the firmware version currently loaded onto the Receiver. For more information on updating
firmware, please see 'Update Firmware' section.
8. Status - shows the Online / Offline status of each Receiver. Should a product show as being 'Offline', check the
units connectivity to the network switch.
9. Source - shows the current source selected at each Receiver. To switch source selection, choose a new Transmitter
from the drop-down selection.
10. Scaler Resolution - adjust the output resolution using the built-in video scaler inside the Multicast Receiver. The
scaler is capable of both upscaling and downscaling the incoming video signal. Basic help can be obtained on
scaler selection by clicking the button at the top of the page marked 'Scaling Help'. The available scaled output
resolutions for IP50HD, IP2xxUHD, and IP3xxUHD systems all differ.
11. HDR On/Off - turns on HDR (High Dynamic Range) compatibillity - only use with screens that support HDR.
12. Function - identifies the Receiver as a standalone product (Matrix) or as part of a Video Wall. This selection is
greyed out when a Receiver is not part of a Video Wall array.
13. LAN2 Mode - where IP250UHD or IP350UHD are being used, the option to separate the Dante audio for
connectivity to a separate Dante network is controlled from here. Where IP200UHD or IP300UHD are being used,
this option is not selectable. See table on previous Transmitter page for LAN selection options.
14. Actions - see next page for breakdown of additional actions options.
15. Scaling Help - you can obtain some basic help with scaling selection by clicking the button at the top of the page
marked 'Scaling Help'.
16. Refresh - click here to refresh all current information on the devices within the system.
